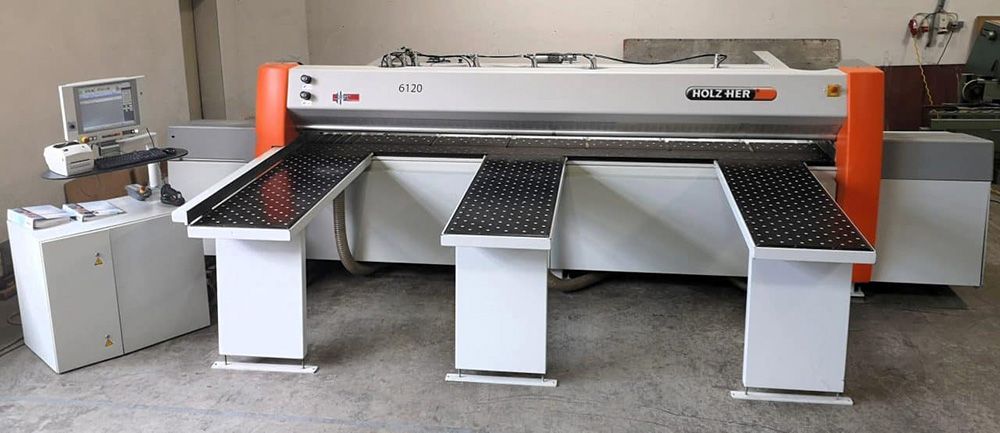

Holzher CUT 6120

Heavy-duty precision high-performance panel dividing machine
Cutting length 3900 mm
Cutting depth 3100 mm
Saw blade projection 82 mm
Control unit CUTCONTROL 2, 17″ TFT touchscreen
Powerful optimization software CD CUTTING-SYSTEM
Label printer
3 air cushion tables 1800 x 600 mm
Automatic angle clamping device up to max. 1300 mm
Automatic cutout device
Remaining cut device
Cable remote control
Pneumatic Edge trimming stops
Main saw unit 11 kW, saw blade diameter 350 mm
Scoring saw unit 2.2 kW, saw blade diameter 180 mm
Saw carriage feed 0 – 100 m/min stepless
Saw carriage return 130 m/min
Grid fence feed 0 – 100 m/min (EU 0-25 m/min)
Grid fence feed - return 100 m/min
Collets for rip fence 7 pcs.
Compressed air connection 6 bar
Dust extraction connection main machine 1 x 120 mm
Dust extraction connection pressure beam 3 x 120 mm
Dust extraction capacity 3500 m³/h
Air velocity 30 m/sec.
Machine dimensions approx. 6000 x 6000 mm
Weight approx. 5,000 kg
Machine from retirement/craft business
Machine is in TOP CONDITION
