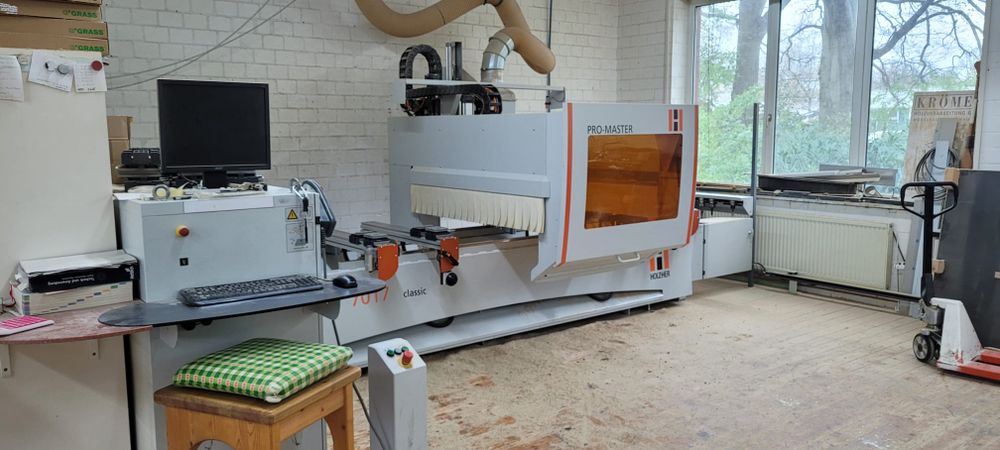

Holzher Pro Master 7017K classic
EUROPE (Western and Northern)
Processing dimensions:
X = 3425 mm
Y = 1287 mm
Z = 325 mm
Max. workpiece height: 180 mm
Max. clearance under hood: Y = 1450 mm / Bumper version = 1370 mm
Incl. CabinetControl Base (1x machine license / 1x office license)
Routing head 7830 (single-stage), power 6.5 kW
Air-cooled, infinitely variable speed (n max.) 1000 – 18,000 rpm
Max. power between 12,000 rpm and 18,000 rpm
With HSK-F 63 tool holder
With collet chuck for HSK shank
Drilling unit 7884, 14 spindles
10 individually selectable vertical spindles
L-shaped arrangement: 6 in X-direction and 4 in Y-direction
Drive power 3 kW
32 mm grid
Sawing unit
Integrated sawing unit for sawing/grooving in X-direction
Infinitely variable speed (n max.) 1000 – 5650 rpm
Tool mounting: Max. tool diameter 125 mm
