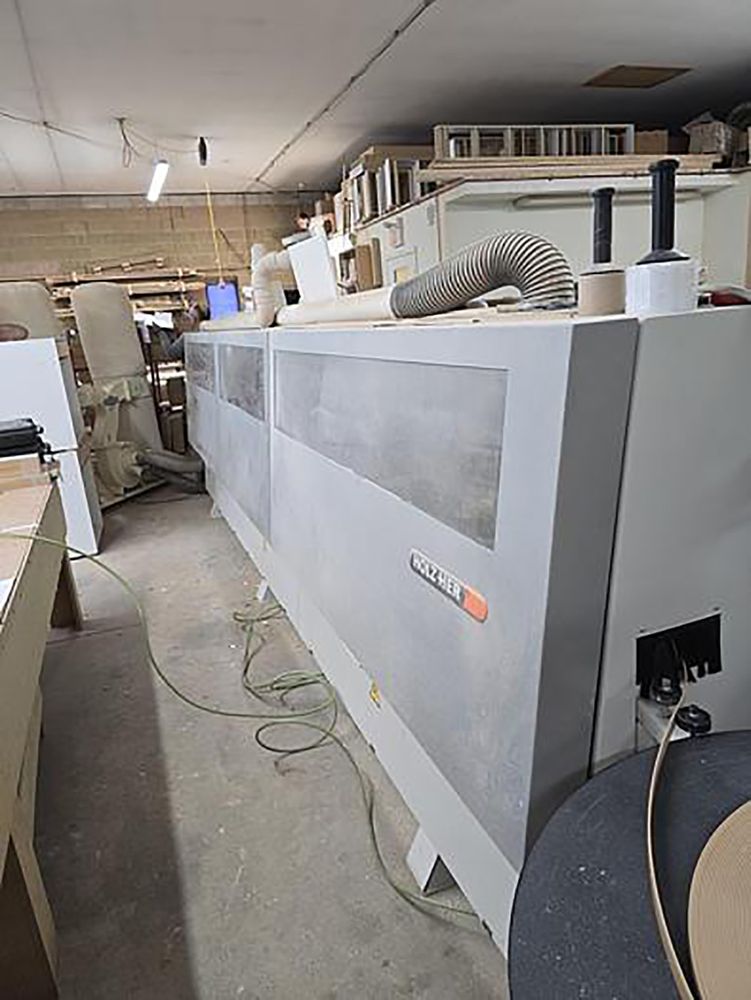

Holzher Sprint 1321

Edgebander with pre-mill & corner rounding.
Cartridge glue system with 5 minute heat up with servo glue height adjustment
EDGECONTROL PLC controls with servo adjustments
Motorized pressure beam thickness adjustment
Programs can be easily created and recalled with graphic interface but can be run manually without need to create programs
Panel thickness: 6mm min - 50mm max
Feed speed: 41 Ft/min
Max coil thickness: 3mm
Max strip thickness: 15mm
Two motor Premilling unit #1961 with two (2) 2.0kw motors at 12,000 rpm
Automatic coil, strip feed magazine #1903
Tractor feed belt system with edge guide for strips and coil material
Three roller servo controlled pressure section
Double motor end trim unit # 1918 with PCS ("pneumatic change over) and Uni-point axis system to eliminate set up
Top and bottom trim unit #1823 (stacked) with SIKO trim adjustments
Top and bottom tilting flush trim unit #1942 with servo cutter positioning from flush, chamfer and radius
Corner rounding unit # 1832 with single motor for 3mm PVC with SIKO adjustments
Scraping unit with PCS in/out adjustment from panel
Top and bottom glue scrape station with PCS on/off
Top and bottom oscillating Buffing unit
Micro-processer line control no limit switches
Sound enclosure with interior lights
230v 3ph
