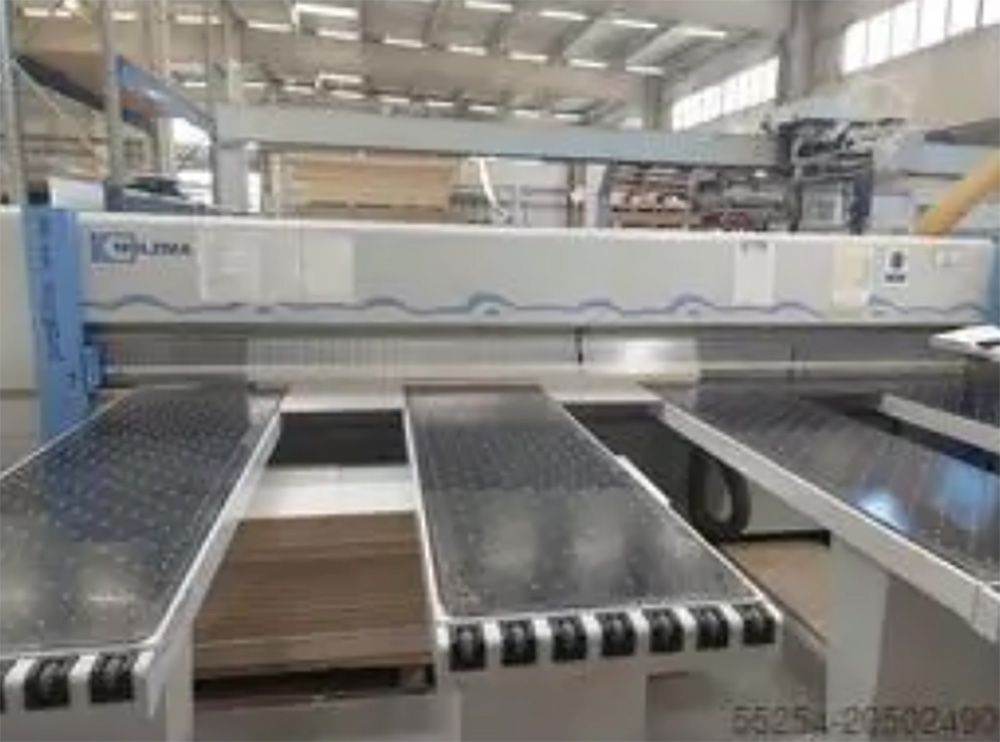

Holzma HPP 380+TBP200

Condition: excellent (used)
Functionality: fully functional

Technical details :
Feed length X-axis: 4,300 mm
Feed length Y-axis: 4,300 mm
Cutting length (max.): 4,300 mm
Cutting height with scoring (max.): 4,300 mm
Saw blade diameter: 380 mm

Description:
HPP 380/43/43, fully automatec loading with TBP 200/31/22/
Main motor 18.5 kW
Machine works perffectly, possible test run
Holzma Profi HPP 380
Cutting length: 4,300 mm
Cutting width (program-controlled pusher travel): 4,250 mm
Air cushion table: 2,160 x 650 mm, 3 pcs. + 1* 2,810 mm length
Central blower: 1 unit with increased blower performance
2 additional alignment devices

Technical Data:
Saw blade projection: 95 mm
Saw carriage feed: forwards 1–130 m/min, backwards constant 130 m/min
Main saw motor: 18 kW
Scoring saw motor: 2.2 kW, VVSH aggregate, program-controlled, vertically rising
Operating voltage: 400 V (+10%/-5%) / 50 Hz
Electrical connection rating for main saw motor 18 kW: 24 kW
Power Control CADmatic 4.0 control with 17-inch flat display
Labeling with part graphics / label program / label printer PICA 104
