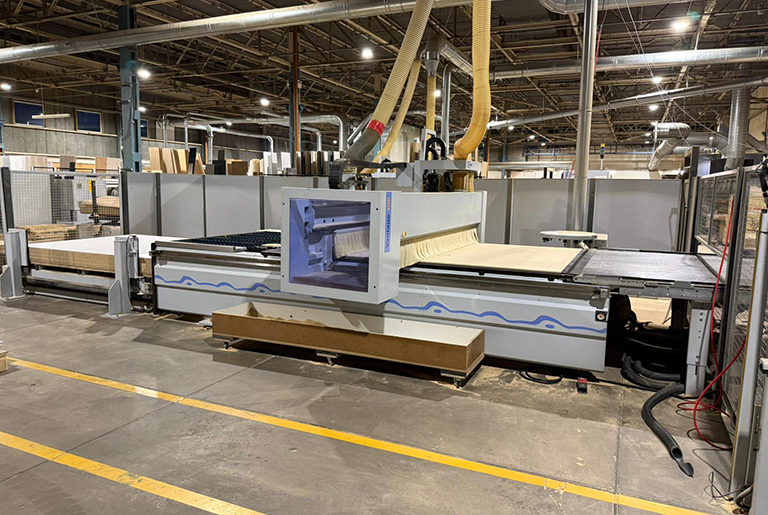

Homag BHP 100 / Vantage 710

Handling concept 2 consisting of:
Lift table
Section bridging by roller conveyor
Vacuum arm for positioning material
Pneumatically lowerable stop fences
Push-off device
Dust extraction hood for protective boards
Dust extraction channel at outfeed (from below)
Transport belt 4050 x 2250 mm
14-position tool changer
Simultaneous push-off and infeed

Table Dimensions:
Length: 3100 mm
Width: 2250 mm
Thickness: 100 mm

Feed Speeds:
X/Y: 96 m/min
Z: 20 m/min

Vacuum System:
3 vacuum pumps with a total capacity of 900/1080 m³/h

Stops:
4 pneumatically lowerable stops

Spindle & Interfaces:
9 kW main spindle – liquid cooled
Aggregate interface for main spindle C-axis
Flex 5 interface for C-axis

Additional Features:
Air jet integrated in extraction hood
12 vertical drilling spindles with quick-change system
Grooving saw swivelling 90°
Tool-change assistance device
Tool-length control
PowerTouch with power control hardware
CE
Weeke Quality Pack
Energy Saving Mode
