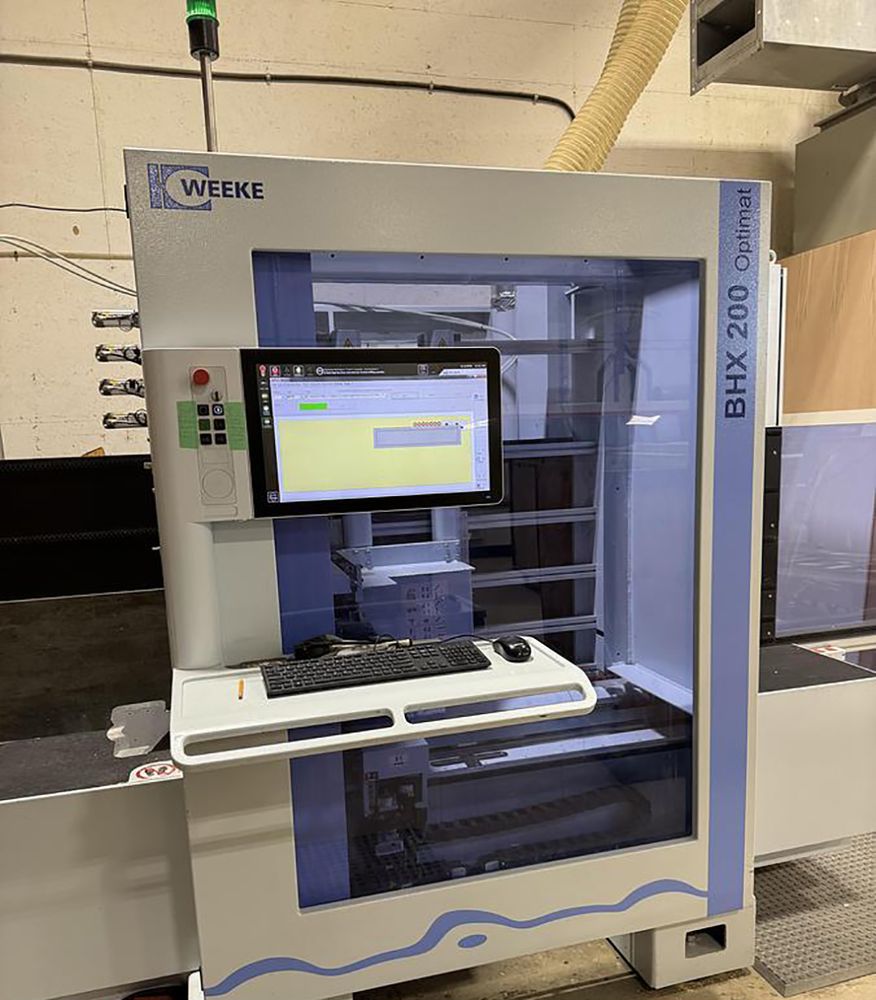

Homag BHX 200

Working dimension X 3.050 mm
Working dimension Y 1.250 mm
Working dimension Z 80 mm
Number of milling spindles 1
Main motor power 10 kW
Rotation speed max 24.000 rpm
Tool clamping system HSK-F63
Tool changer positions 4
Vertical drilling spindles 15
Horizontal drilling spindles in X 6
Horizontal drilling spindles in Y 4
Groove saw 90° turnable

Vertical working surface
Machine table Feed-through technology
Special work piece clamping system clamp gripper
Out feed Work piece return
Barcode reader
Dowel insertion

Glue system PVAc
Dowel diameter 8 mm
Dowel length max35 mm
Safety device enclosed cabin
Milling for fittings Yes
HOMAG Plausibility check
Control cabinet cooling
ControlHOMAG POWER CONTROL, Homag powerTouch
