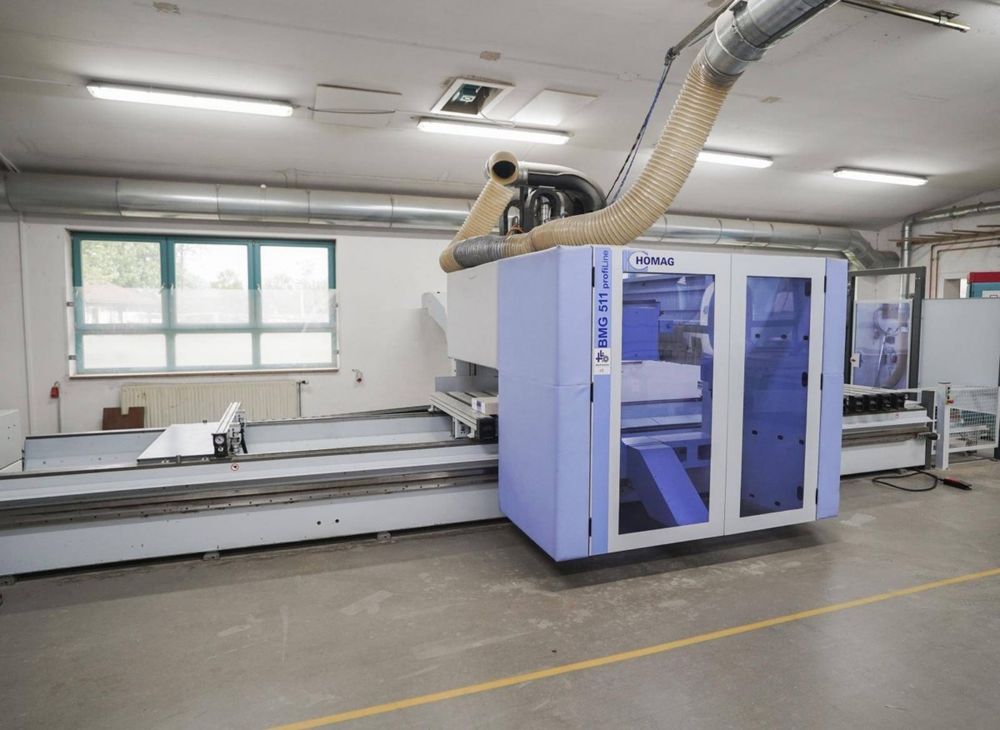

Homag BMG 511 /60/12/F/K Profi 5-axis

- 5-axis CNC processing center
- Moving gantry machine (dual-drive gantry system)
- 1 HOMAG DRIVE 5 C+ routing spindle, 5-axis, HSK-F63, 15 kW, max. 24,000 rpm
- 1 HOMAG Multi Processing Unit
Drilling head with 30 spindles: V20 / H10 / S360° "MPU"
MultiProcessingUnit with C-axis +/- 185°
- 1 Chain tool changer, 30-position
- Includes SL laser projector
- Includes vacuum suction cups (as available)
- Spare parts and accessories as shown in photos
- Last HOMAG 5-axis service: 2024
- Last HOMAG service: 2025

Technical Data:
Max. workpiece lengths:
All aggregates: Single 6,000 mm; Pendulum min. 1,550 mm, max. 3,200 mm
Tool dia. 25 mm: Single 6,175 mm; Pendulum min. 1,550 mm, max. 3,200 mm

Max. workpiece width:
All aggregates, front stop 1,100 mm
Milling operation tool dia. 25 mm: Front stop 1,325 mm, rear stop 1,550 mm

Workpiece thickness:
Max. 300 mm including clamping devices

Routing spindle and drilling head
2 independent Z-axes

1 HOMAG DRIVE 5 C+ routing spindle, 5-axis, HSK-F63, 15 kW, max. 24,000 rpm
Liquid-cooled routing spindle, DRIVE5C+ aggregate interface with 3-point torque support

1 HOMAG Multi Processing Unit
Drilling head with 30 spindles: V20 / H10 / S360° "MPU"
MultiProcessingUnit with C-axis +/- 185° for drilling and sawing operations at any angle
1 motor 2.3 kW, frequency-controlled, max. speed 7,500 rpm selectable via program for rapid processing even with small diameters
20 vertical HIGH-SPEED spindles
10 horizontal spindles
1 grooving and parting saw
Includes Z-axis module
Includes extraction hood

Tool changer:
1 Pick-up station for 350 mm saw blade for DRIVE5(C)+
1 Chain tool changer, 30-position, D=80
For tools and aggregates with HSK-F63
Chain changer with 30 tool/aggregate positions for use with machines featuring 1 main spindle
1 upstream double gripper for rapid tool changing

Console table with
12 consoles, Y=1,500 mm for K-table
6 lifting rails (HPL), lift 100 mm

Additional accessories:
SPEED PACK: Increase in... Max. traverse speed of X-axis: 80 m/min; vector speed = 110 m/min
Contour laser positioning aid
1 vacuum pump (300 m3/h)
Chip conveyor belt with extension
Vacuum clamping system
SL-Laser
Energy-efficient 5-axis extraction hood

Safety equipment:
Laser, bumper
SAFESCAN for Speed ??Pack
CE mark
HOMAG Speed ??Pack
HOMAG Quality Package
Enclosed energy chain

Control system:
PowerControl PC85
HOMAG powerTouch
Handheld terminal
HOMAG IPC Powerpack

Software:
HOMAG woodWOP 7.1
WoodScout diagnostic system
MMR Basic

Space requirements (approx. dimensions)
Length: 11.1 m, Width: 6.215 m, Height: 3.1 m
Machine supplied WITHOUT processing tools.
