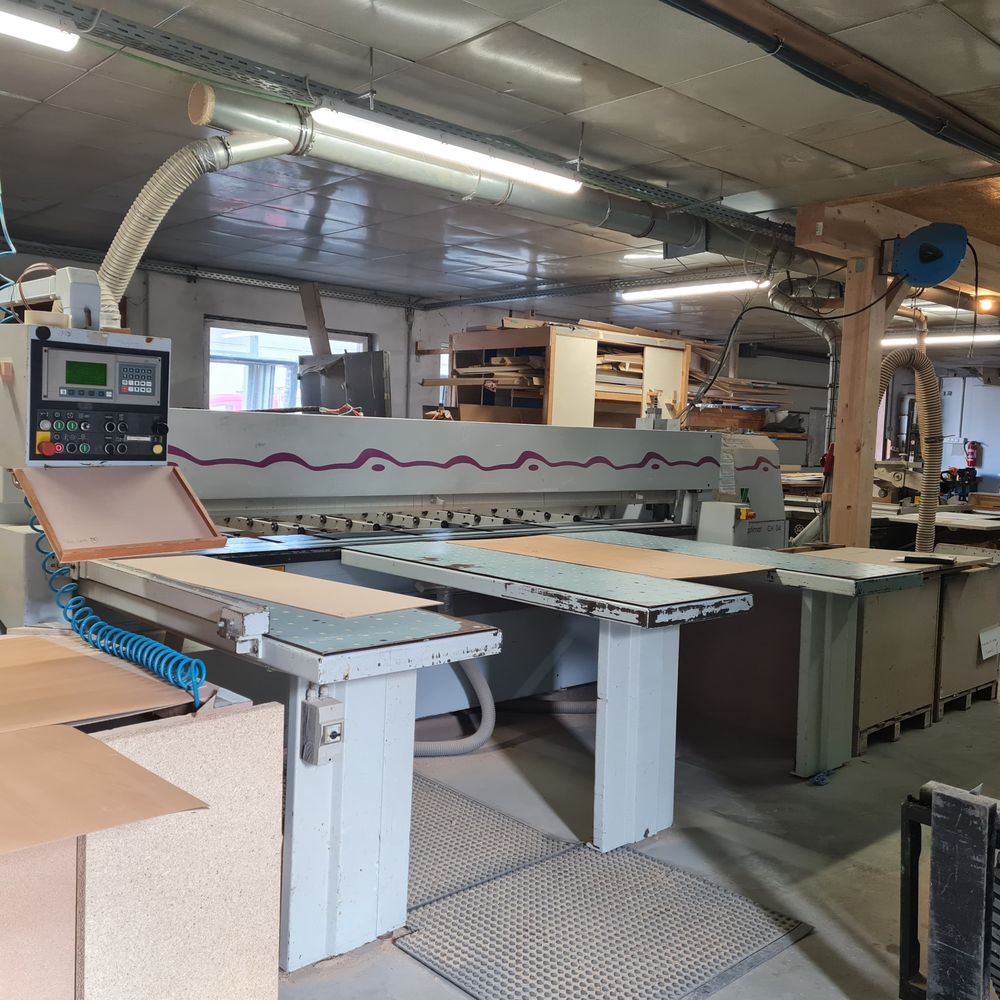

Homag CH 04

Used machine
Standard control with graphic display showing the cutting plan and the current workpiece
Memory capacity: 90 cutting plans, each with a maximum of 30 cutting dimensions and 99 repetitions per dimension
Worklists with 20 different programs can also be created

Cutting length: 3800 mm
Cutting width: 3800 mm
Cutting height: 30/60 mm
Motor: 7.5 kW
Main saw blade diameter: 350 mm
Scorer: 1.1 kW
Scoring saw blade diameter: 150 mm
Saw carriage feed: 6-32 m/min
Program slide feed: 0.6/24 m/min
Number of collets: 5
Total connected load: 11 kW
Total extraction capacity at 25 m/sec = 3400 m³/h
Compressed air connection 6-7 bar
Overall width 6440 mm
Overall depth 6940 mm
Overall height approx. 2000 mm
Gross weight approx. 4000 kg
