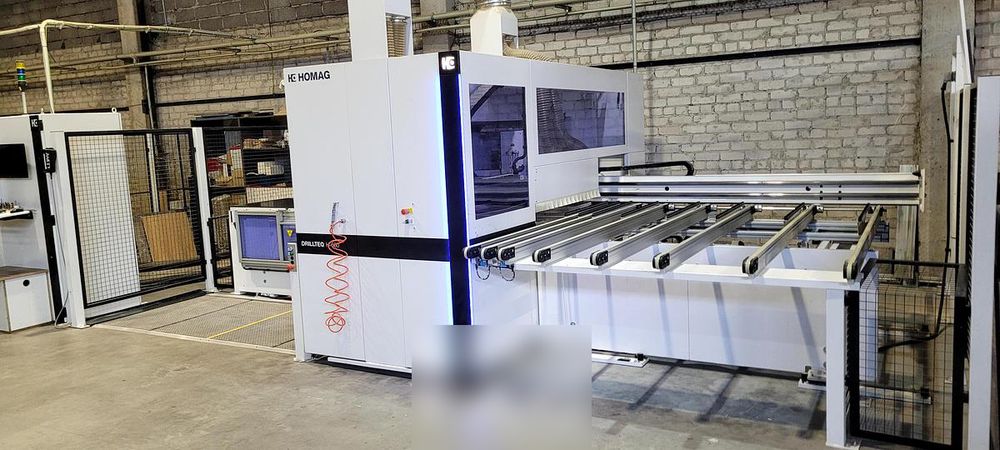

Homag Drillteq H-600

Multi-spindle drilling almost new machine (working hours 3957,41) for sale!

WORKPIECE DIMENSIONS:
workpiece length: min. 200 mm
workpiece length: max. 2500 mm
workpiece width: min. 70 mm
workpiece width: max. 1000 mm
- with restrictions
in processing: 1300 mm

workpiece thickness: min. 8 mm (2 x 4 mm)
workpiece thickness: max. 80 mm (2 x 40mm)
workpiece stacking: max. 2 pieces
- same workpiece dimensions

BASIC MACHINE:
- rigid steel frame construction
- 2 workpiece clamping devices with integrated stop system
- Separate adjustment of the clamping devices via rack and pinion gear in X-direction
- Digital AC servomotors
- The position of the clamping devices at the workpiece is program-controlled
- Adjustment of the clamping devices between the separate processing steps in the processing area is possible.
- Automatic measuring of the workpiece thickness and lengths by the clamps and the stop system
- Blowing nozzle for safe removal of residual
