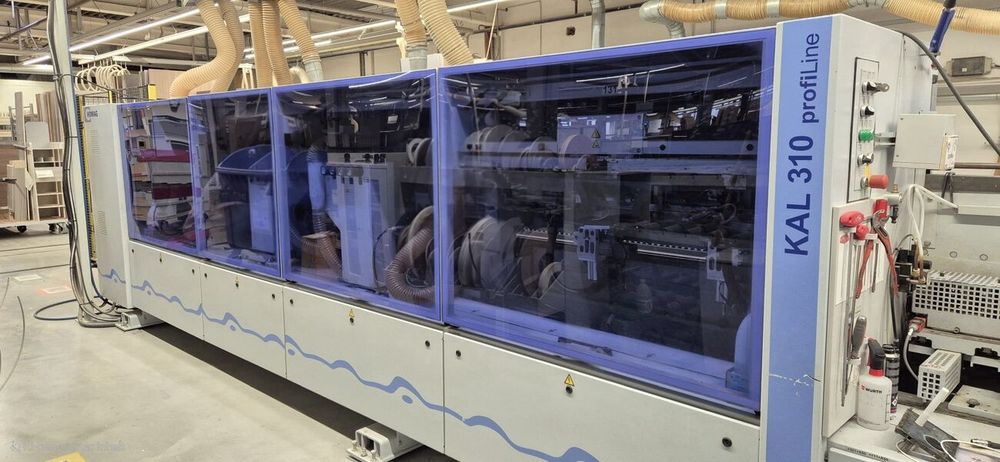

Homag Homag Type: KAL

Single sided edge banding machine
Technical data:
- ISAS 28-position edge magazine
- PU gluing unit
- Boomerang return system

Joint Milling Unit:
2 motors, each 3 kW, 150 Hz, 9,000 rpm
Pneumatically controlled for infeed milling operation

Gluing Unit:
PU 34 gluing system with PU melting unit, capacity up to 6 kg/h
Adhesive container size: 2 kg
QA glue application unit

Selectable edges from ISAS edge magazine (28 positions)
4 pressure rollers
Separating Agent Spray Unit:
For top and bottom application

End Trimming Unit (Model WK 13 - Chamfer/Straight):
2 motors, each 0.4 kW, 200 Hz, 12,000 rpm
Electro-pneumatic adjustment of trimming motors to 2 positions (flush and overhang trimming)

Pre-Milling Unit:
2 motors, each 0.55 kW, 200 Hz, 12,000 rpm
With double roller tracing and electro-pneumatic retraction

Profile Scraping Unit FK 11 - Manual:
For processing edge overhangs on the top and bottom of the workpiece, as well as trimming the front and rear edges
2 motors, each 0.4 kW, 200 Hz, 12,000 rpm

Universal Milling Unit UF 11:
1 motor 4 kW, 150 Hz, 9,000 rpm
Swiveling 90°, electro-pneumatically controlled
HSK 63 F tool holder with push-button release

Profile Scraper Unit PN 10:
Pneumatic adjustment for lateral retraction from the working area

Finish Unit FA 11 (Top / Bottom):
Comprising:
Glue joint scraper
Cleaning fluid application
Buffing unit with 2 motors, height-adjustable with upper pressure beam

Machine Control: 19-inch touchscreen operation

Return Conveyor System:
BOOMERANG ZHR05
Inclined air cushion table, length 2,000 mm, width 1,000 mm
Conveyor belt width: 1,100 mm
Workpiece parameters:
Length: 300 - 2,500 mm
Width: 60 - 1,100 mm, or
Length 300 - 800 mm, width >1,100 - 2,000 mm
Thickness: 8 - 60 mm
For four-sided processing:
Minimum part size: 300 x 300 mm
Maximum part size: 2,000 x 800 mm
With roller support rail for wide parts
