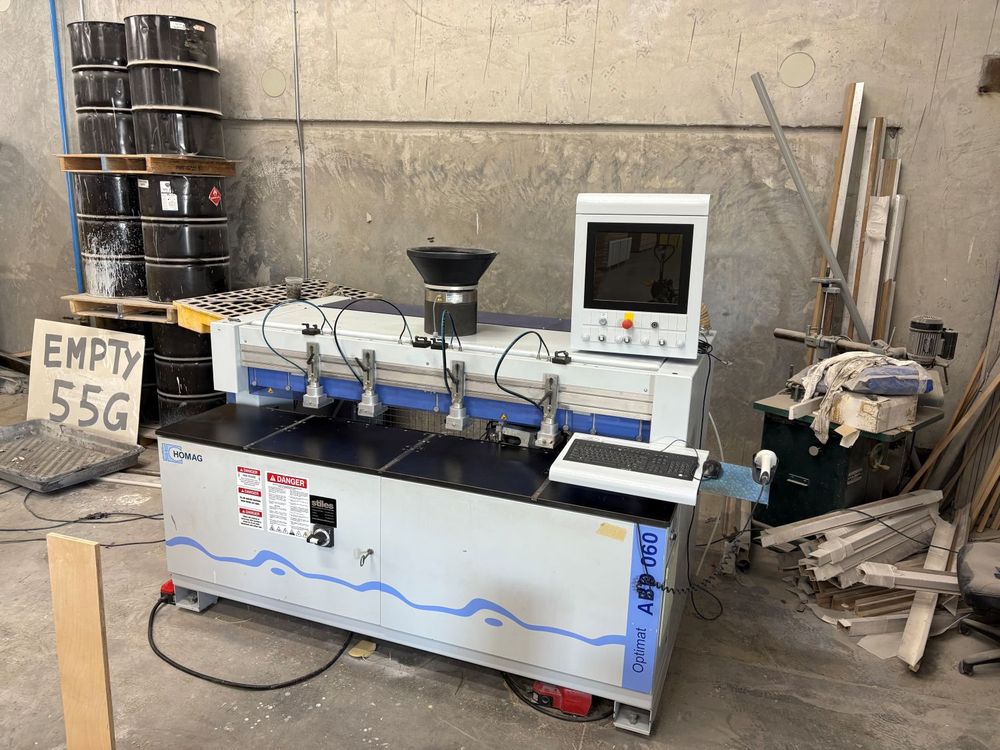

Homag OPTIMAT ABD060/12/NA

CNC Controlled Dowel and Boring Machine
Specifications:
- Functionality: 1 horizontal drilling head and 1 glue/dowel injector.
- Workpiece Capacity: Handles parts up to \(1,250 \text{ mm}\) (49 inches) long, \(800 \text{ mm}\) (31.5 inches) wide,
and between \(10 \text{ mm}\) and \(60 \text{ mm}\) thick.
- Dowel Size: Configured as standard for \(8 \text{ mm}\) diameter dowels (usually 30 or 35 mm in length).
- Operating Zones: Features dual independent working fields (left and right) for pendulum processing. This means you can load parts on one side while the machine processes the other side, minimizing downtime.

Features:
- Automation: Equipped with a vibrating hopper for automatic dowel infeed and a low-pressure glue pump for precise glue metering.
- Software: Uses HOMAG’s Power Control and woodWOP operating systems, which allow for graphic programming, error diagnosis, and automatic workpiece mirroring.
- Hold-Downs: Includes pneumatic top clamps to securely lock materials in place during the drilling and insertion cycle
