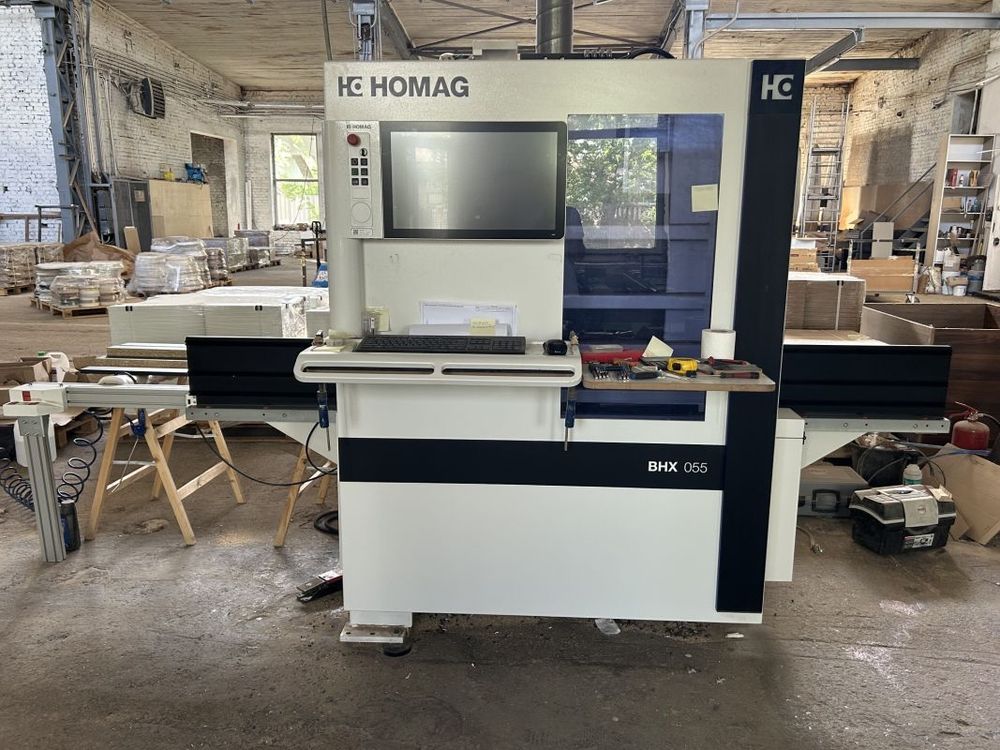

Homag Optimat BHX055

Vertical CNC drilling and machining center
Workpiece length 200 - 3,050 mm
Workpiece width 70 - 850 mm
Workpiece thickness 12 - 60 mm
Milling spindle 1 unit
Main spindle power 5 kW
Max. speed 18,000-24,000 rpm (depending on configuration)
Tool holder HSK-F63 or ETP25
Tool changer 4-position magazine
Vertical drilling spindles 13
Horizontal drilling spindles (X) 4
Horizontal drilling spindles (Y) 2
Grooving saw X-direction
Control system Homag powerTouch / Power Control PC 86
Software WOODWOP 7.x
Total connected load 11.5 kW
Compressed air requirement 7 bar
Machine weight approx. 1,580 kg
Footprint (L × W × H) approx. 2,950 × 1,984 × 1,895 mm
CE marking
