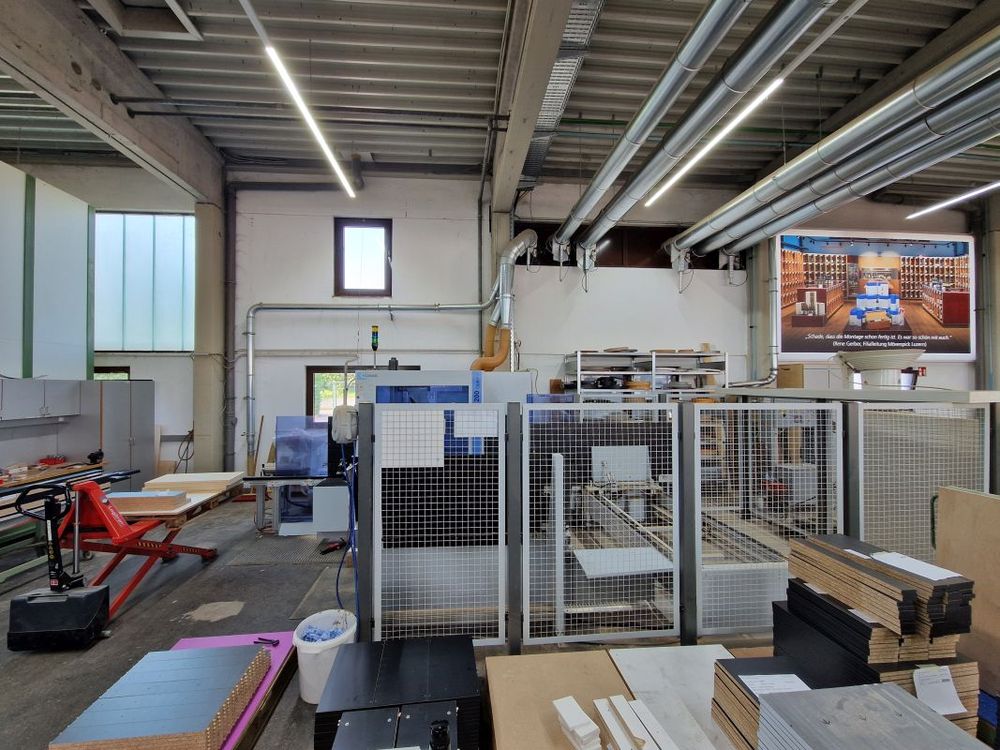

Homag Optimat BHX200/D

Vertical CNC machining center

Technical data:
Speed of the axes: X/Y = 50 m/min / Z = 15 m/min
Workpiece length: 200 - 3,050 mm
Workpiece width: 50 - 1250 mm
Workpiece thickness: 8 - 80 mm
Transport speed: up to 25 m/min

Drilling gear V15 High Speed
Feed stroke Z-direction: 60 mm
Drilling depth: max. 38 mm
Direction of rotation: right/left
Speed: 1,500 - 1,700 1/min, frequency-controlled
Drive: 2.3 kW

Horizontal drilling gear with 6 spindles X-direction
6 drilling spindles: 32 mm pitch, 3 each in X - direction
Drilling depth: max. 38 mm
Drilling height Z - direction: 32 mm from top edge of workpiece
Direction of rotation: right/left
Speed: 1,500 - 1,700 1/min, frequency-controlled
Spindle type: individually controllable

Horizontal drilling gear with 4 spindles Y - direction
4 drilling spindles: 32 mm pitch, 2 each in Y - direction
Drilling depth: max. 38 mm
Drilling height Y - direction: 32 mm from top edge of workpiece
Direction of rotation: right/left
Speed: 1,500 - 1,700 1/min, frequency-controlled
Spindle type: individually controllable

Vertical fitting drilling gear, 3 spindles
Number of spindles: 3
Feed stroke Z-direction: 60 mm
Drilling depth: max. 38 mm
Spindle distance: 45 x 9.5 mm
Tool holder: 10 mm shank diameter with clamping surface
Tool projection: max. 50 mm
Tool length: max. 70 mm
Speed: max 3,000 1/min
Direction of rotation: right/left

Automatic 90° tilting grooving saw
Grooving saw unit can be tilted 90° for processing in the X-Y direction
Cutting depth: 30 mm
Cutting cross-section: max. 70 mm2
Speed: 1,500 - 7,500 rpm, frequency-controlled
Tool diameter: 125 mm
Saw blade thickness: max. 5 mm

Dowel insertion station (white glue)
consisting of:
- 2 dowel insertion tools incl. injection nozzle and dowel separator mounted on the outside of the upper processing support
- Low-pressure glue pump (double diaphragm pump 1:1 (6 bar)) incl. filter unit, low-noise, compact with low energy consumption
- 2 glue flow monitors for the glue feed valves
- 2 oil mist nozzles and 2 cleaning brushes for cleaning the glue nozzles
- 1 feed unit for glue unit
- 1 vibrating conveyor for standard dowels 8 x 35 mm or 8 x 40 mm
- 1 Filling quantity monitor for the vibratory feeder

Note: Dowel lengths of < 35 mm are not recommended due to low pull-out force.
Plausibility check (X/Y) for vertical machining centers

Tool change spindle incl. converter 10 kW (HSK63)
Tool holder: HSK63
Tool infeed: automatic
Tool diameter: max. 60 mm
Tool clamping length: max. 100 mm (175 mm from tool holder contact surface to lower edge of tool)
Tool weight: max. 5 kg incl. holder
Direction of rotation: right/left
Speed: 1,500 - 24,000 rpm, infinitely programmable
Drive: frequency-controlled three-phase current
Max. power at the tool: up to 8.5 / 10 kW in continuous / intermittent operation (S1/S6-50 %)
Spindle lubrication: Grease, permanently lubricated
Cooling: Air
Extraction: Central

4-position pick-up changer on the side for HSK63
Magazine positions: 4 tool positions
Tool holder: for HSK63
Tool weight: max. 5 kg total weight incl. HSK holder
Tool diameter: max. 60 mm
Tool clamping length: max. 100 mm
Tool change time: max. 12 - 16 sec.

1 x stop cylinder for workpiece positioning

BHX 200 workpiece clamping system
2 workpiece clamps can be moved in X direction via toothed racks.
Powercontrol with Powertouch
Powercontrol software BHX 050-200
Woodwop
