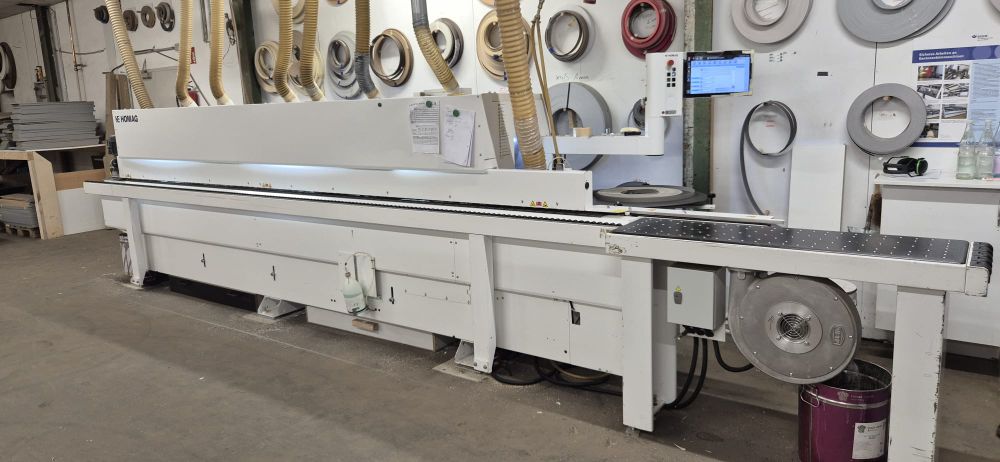

Homag OPTIMAT KDF 450 C EDGETEQ S-300

Used machine
Equipment and technical specifications:
Processing sizes:
Workpiece thickness: 8-60 mm
Workpiece width: from 70 mm
Edge height: up to 8 mm
Edge thickness for coiled material: up to 3 mm

Feed:
Speed ​​adjustable from 8 to 14 m/min, continuously variable
Gluing technology
Glue system for granules
Glue pot above the feed
Homag QA 65 N interchangeable pot
Designed for EVA and PUR processing
Quick-change function

Units:
Jointing trimming unit
Preheating zone
Pressure station, NC-controlled
Front and end trimming with two motors
Station for flush, radius, and chamfer processing
Corner trimming unit with two motors
Scrapers: profile and flat scraper
Buffing unit

Additional and operating equipment:
Spraying device Integrated
Air cushion table for workpiece support
PU pressure rollers
Mechanical infeed barrier
HOMAG powerTouch user interface
Right-hand machine version
CE-compliant

Dimensions: approx. 6,060 x 950 x 1,150 mm
Weight: approx. 2,200 kg
