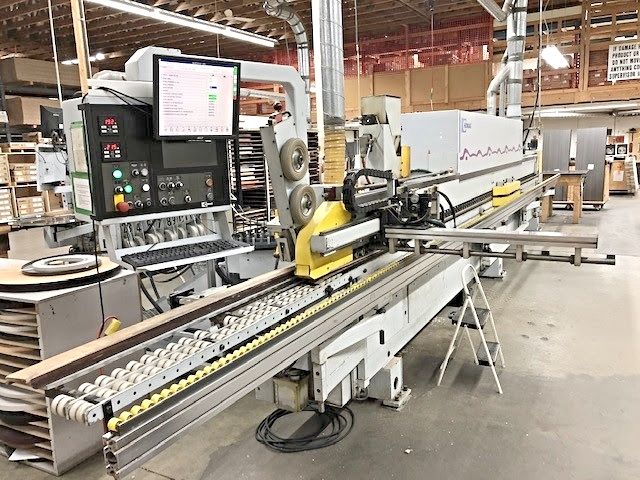

Homag Optimat KL 78/A3/S2

ELECTRICAL
Voltage: 600 volts

OTHER SPECIFICATIONS :
Capacity Specifications:
0.4 - 20 mm Edge thickness cap.
min. panel width 55 mm (2-3/16") for panel thickness 12 - 22 mm (1/2" - 7/8") and under;
100 mm (3.9") for panel thickness over 22 - 60 mm (7/8" - 2--5/16"); for up to 3 mm Coil stock, HPL, and strip stock up to 20 mm (3/4").

Feed & Infeed Section of Machine:
Top pressure beam with: Double-wide compound V-belts; 80 mm wide feed track chain plates, vulcanized rubber insert pads, and Auto-Lube;
variable feed speed from 18 - 24 MPM (59 - 79 FPM); 950 mm height/working level infeed.
Pre-Milling Station with: (2) 3 kW - 150 Hz, 9,000 RPM Motors, panel blowoff device; 2-position infeed fence (on/off), SIKO digital manual fence control.
Panel Pre-Heater with: Quartz lamp for heating substrate edge before glue application.
Edge Feeding device equipped with: Automatic coil magazine for quick coil changeover; strip feeder for up to 20 mm (3/4") solid wood banding.
"Quick Melt QA 34" Glue System with: Reversible glue roller applicator; pressure roll section with (1) large dia. driven and (6) idle rollers;
manual adjustment of pressure zone through SIKO digital counters for different edge thicknesses.
This machine also has a "A 20" Gluing System suitable to work with PUR glue.

Edgebanding Workstations:
Double motor front & rear end trim, straight & chamfer trimming (0.8 HP - 12,000 RPM ea. motor).
Top & Bottom flush trim (2 HP - 12,000 RPM ea. motor).
Corner rounding unit: Equipped with (4) motors, 2 HP - 12,000 RPM each motor.
Universal Milling/Grooving Unit tilt able 90°.
Edge Scrape Super-Finishing unit for thick PVC/ABS with chip collection box.
Top & Bottom Flat Glue Scraper to remove potential glue squeeze-out.
Top & Bottom oscillating buffing unit (two 0.33 HP - 1,650 RPM motors).
"HOMATIC NC 21" controller features with Keypad & LCD display, stores working programs and controls functions of workstations, allows fault diagnostic and more etc.
Complete with: PLC controlled, motorized beam height adjustment; servo adjustments on Top & Bottom flush trim, and servo controlled Scraper Stations.
Electronic DC brakes on all trim motors, sound cabins for all trim workstations, and adjustable outboard panel support.
