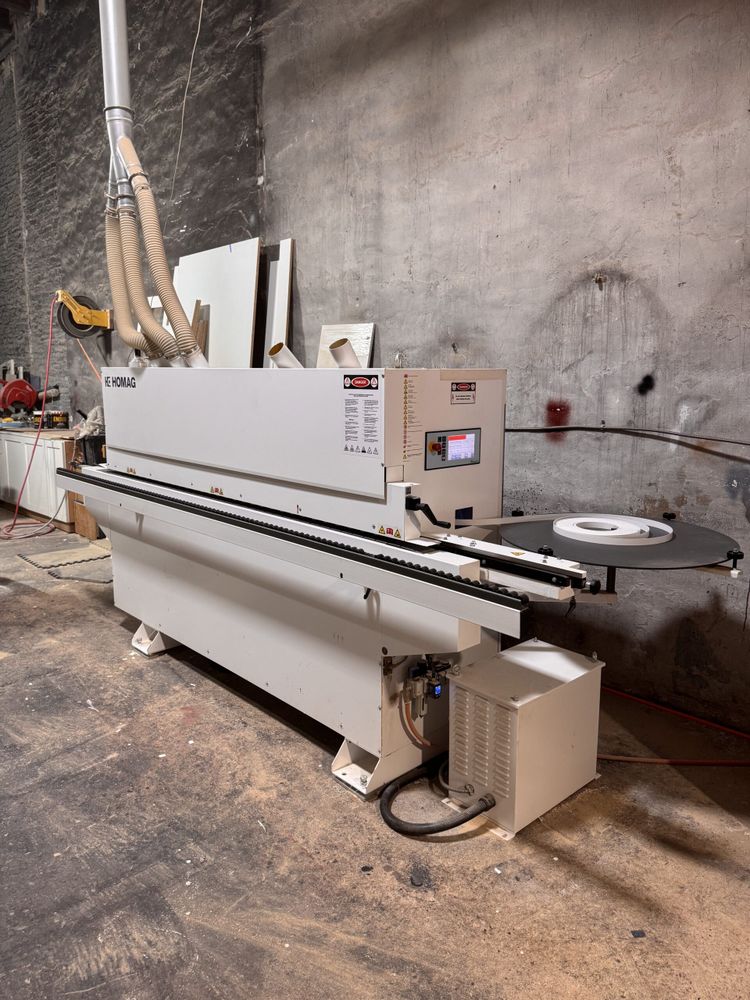

Homag S-200 B

Single-Sided Edgebander
easyTouch Program Control
electrical equipment installed according to UL regulations
heavy machine frame construction with heavy-duty feed track design
control panel located at machine infeed for operator convenience
adjustment on pressure beam and infeed fence via digital height indicator
integrated electronic line control system for increased reliability and diagnostic assistance – no limit switches used for setting operating units
universal automatic magazine for strip and coil feeding
large coil table (800 mm diameter) to accommodate large coils of 3 mm PVC
feed speed: 8 m/min (26 ft/min)
workpiece thickness: 40 mm
automatic height adjustment with top pressure beam for all work stations
standard hot melt granulate glue application system with no lubrication needed
automatic temperature reduction feature lowers the glue temperature if no workpiece is run over a 15-minute span (reheating accomplished in three minutes)
first pressure roller driven and two (2) idle pressure rollers with digital setting system
Double-Motor End Trimming Unit mounted on linear guides for precision trimming
Top and Bottom Fine Trimming Unit equipped with DFC cutter heads (indexed horizontally for more use of insert width), with combination radius / straight carbide inserts.
Digital readouts provided.
Three (3) working positions: flush trimming, trimming with overhang, and radius / bevel trimming. (R = 3 mm)
OPEN SPACE: Possibility of adding Quick-Change Profile Scraping Unit
Buffing Unit with two (2) motors, two (2) cloth buffing discs (150 x 20 mm diameter) sound enclosure with window
extendable workpiece support track
electronic frequency changer for all trimming motors – including electronic motor braking
isolation transformer with variable infeed voltage for balancing all three (3) phases of incoming power
and increasing the lifetime of the machine’s electrical components
