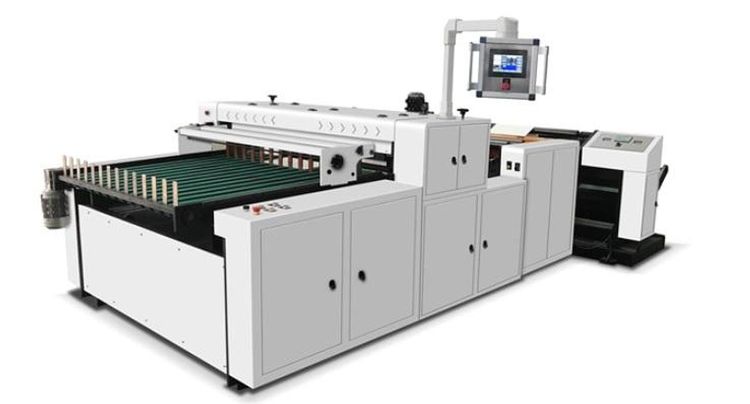

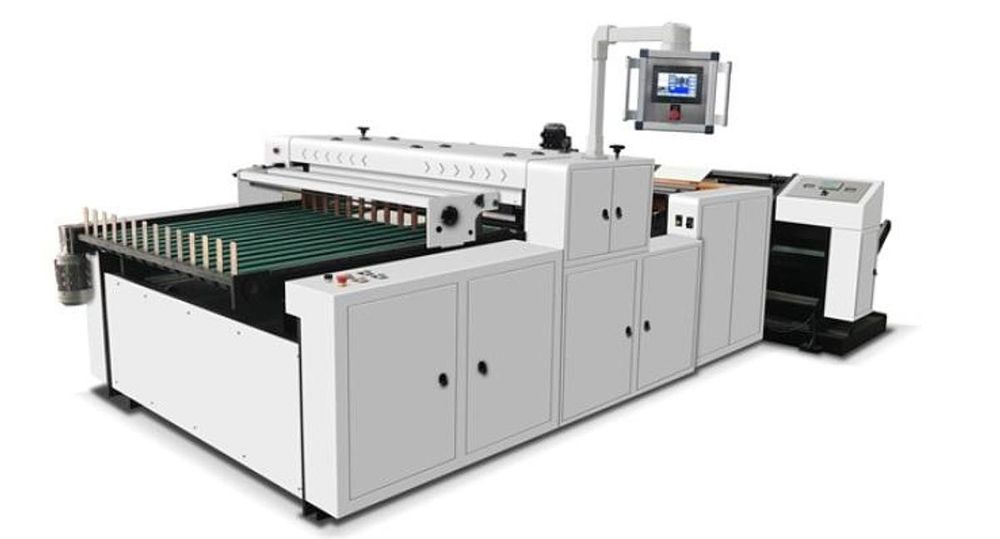

Honco HKS-1100W

Roll to sheet cutting machine
Condition Used (visible in production)
Max. Cutting Width (mm) 1100 mm
Max. Unwinding Diameter Φ 1400 mm
Roll Max. weight 2000 kg
Inner core diameter 76mm (3”) and 152mm (6”)
Cutting length(min. - max.) 20 - 700mm
Cutting thickness 30-500g/m2
Precision of cross cutting ±0.2mm
Max. cutting speed 180 m/min (based on the cutting length)
Max. pile stack height 150 mm
Total power 8kw
Air supply 5.5kg/cm2×5m3/min
Machine weight 4000 kg
Overall Dimension (mm) 5800*1700*2000

Additional information:
Shaft-less unwinder
Ultrasonic web guiding system (EPC)
Tension control Anti-curve device
Slitting function
Dance rolls
Color Code
Pneumatic nip rubber roller
Heavy-duty casting blade holder
Anti-static device
Air blowing system
Servo motor with driver
Synchronous belt and wheel transmission mechanism
Auto Stacker and Conveyor
LCD colorful touch screen and PLC
Electrical Cabinet

This machine is suitable for cross cutting various papers, adhesive sticker, PVC, Paper-plastic coating material jumbo roll into sheet with high speed and high precision.
Equipped with conveyor stacker, you can collect finished sheets and don’t need to stop machine which can help you improve efficiency largely.
