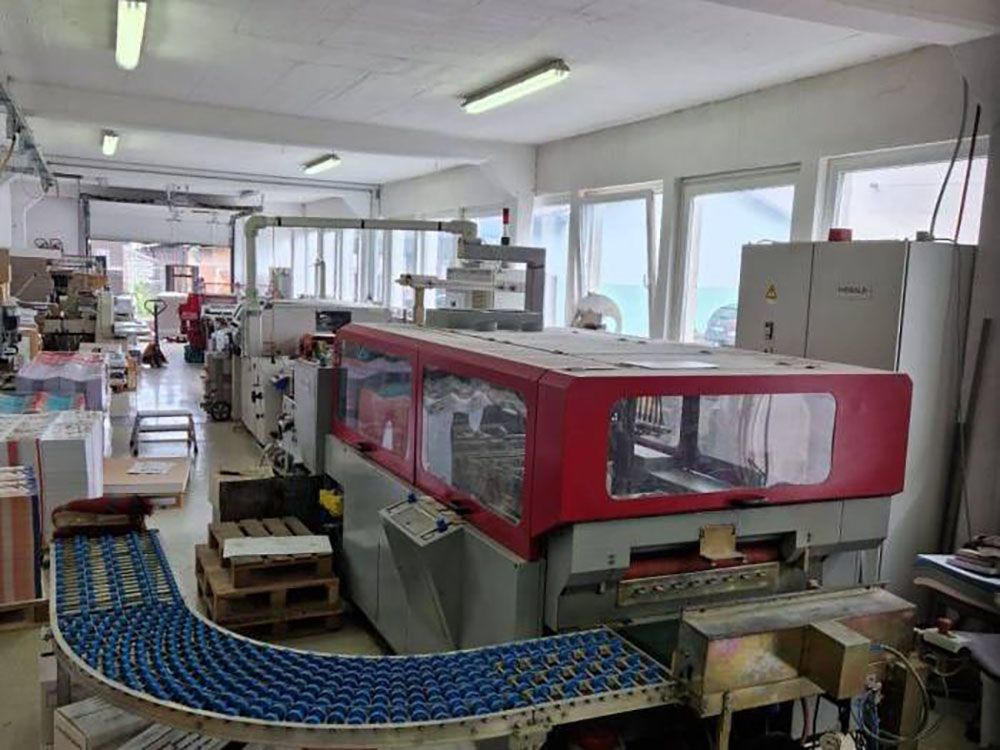

Horauf BDM Universal

Counter 19 mil
Max Peed 80 cases in min
Maxi format 41x72 cm – Counter approx.19 million
Casemaker machine

Equipped with:
Board pre-stack conveyor, with centralized preparation function.
Feed and cardboard guides and flexible back dispenser.
Continuous feeder of cover sheets.
Gluing and pressing station.
Transport system.
Head and tail folding station with corner folding devices.
Side folding stationBand2nd pressing station with a pair of pressing rollers and delivery.
Counter-stacker with return belt and return roller track to the operator's station.
Vacuum pump Centralized lubrication.
Electrical cabinet
Pneumatic pressing device in the roofing material feeder.
Glue monitoring control unit.
Pre installation for a pot of cold glue (Add Pump system)

DATA TECHNIQUES
Mechanical speed: up to 50 cases / min.
Size range:
Open case size: min105 mm x 170 mm max 410 mm x 720 mm
Panel thickness: min 1 mm max 4 mm
Back width: min 8 mm max 80 mm
Hinge width: min 5 mm max 15mm
Rigid back thickness: minm1 mm max 3 mm
Flexible spine thickness: min 0.3 mm max 0.6 mm
Compressed air requirements: 1,200 Nl / min @ 6 bars
Power supply: 400 V, 3 PNE, 50 Hz 25.0 kW
Machine in good working order, Available immediately
