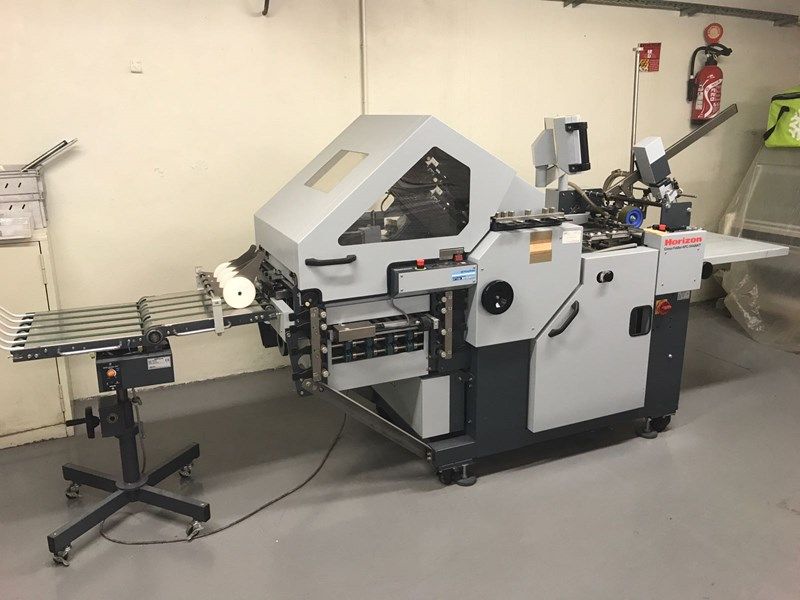

Horizon AFC-544 AKT

Operating time: 14 million
Four parallel buckle plates, one right-angle knife fold, and two parallel buckle plates following the knife fold, model AFC 544 AKT.
Maximum sheet size: 540 × 740 mm.
Minimum sheet size for parallel folding: 128 × 148 mm.
Minimum sheet size for right-angle folding: 168 × 148 mm.
Memory capacity: 17 standard pre-programmed folding types.
Minimum fold length: 35 mm.
Paper weight range: 40–220 g/m2.
Maximum speed for parallel folding: 230 m/min.
Maximum pile height: 700 mm.
Pneumatic sheet feeding with front suction feeder and suction drum.
Folding speed:
40,000 sheets/hour for right-angle folding,
14,000 sheets/hour for parallel folding.

The folding machine features automatic format setup.
It is equipped with a touchscreen control panel displaying icons that allow the operator to enter the machine operating parameters.

STANDARD EQUIPMENT :
Two perforating tools.
Two creasing tool sets.
Control panel including:
sheet counter,
stop counter,
prescaler,
productivity indicator,
fault indicator,
sheet feeding and operating speed adjustment settings.
The machine is equipped with a special TECHNIFOLD creasing unit for cardboard.
