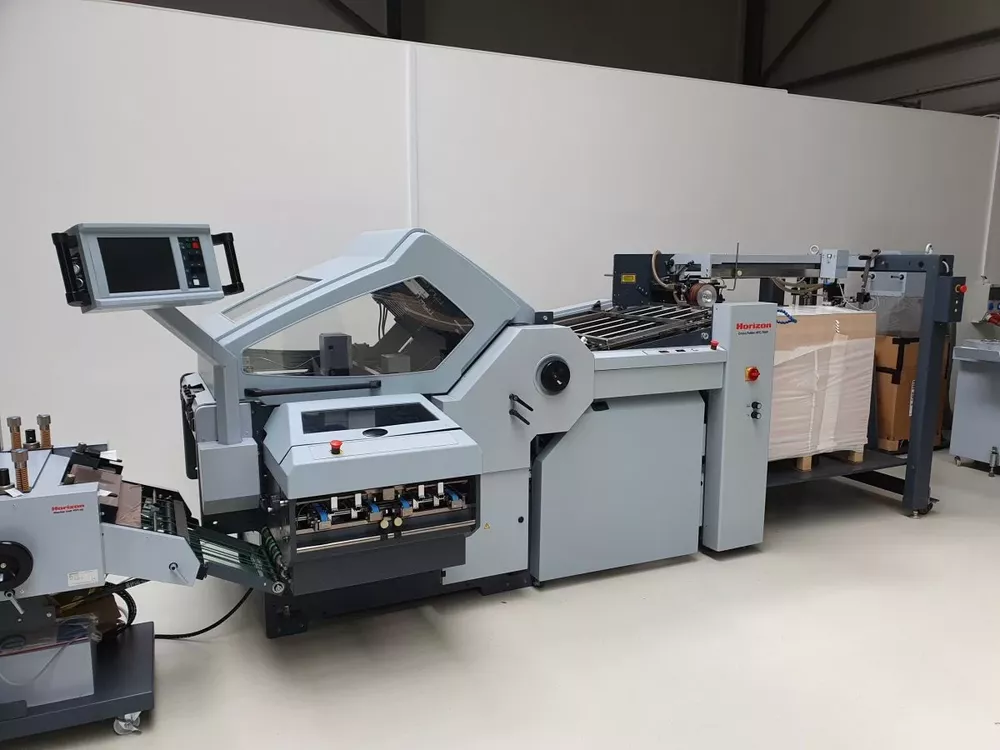

Horizon AFC 746F PFU

Refurbished folding machine with pallet feeder.
The machine is after a comprehensive refurbishing.
The machine was cleaned and the following parts were replaced
Complete rubber coating of cylinders with polyurethane has been made, complete set of bearings, new belts,
replacement of several consumable parts.
The machine was adjusted and tested.

Count: 28 876 055
Condition: Cleaned/ Refurbished

SPECIFICATIONS
Max. sheet size : 738 x 1,100 mm (29.055” x 43.310”)
Min. sheet size : 210 x 297 mm (8.270” x 11.695)
Folding size :
1st fold: 55-560 mm (automatic)
2nd fold: 30-515 mm (automatic)
3rd fold: 30-480 mm (automatic)
4th fold: 30-480 mm (automatic)
5th folds: 30-480 mm (automatic)
6th folds: 30-330 mm (automatic)
Stack height 750 mm
Paper weight :
Normal: 35 – 220 g/m²
Coated: 50 – 232 g/m²
Speed of production :
Belt: 30 – 230 m/min. (99″ – 754″/min.)
Knife: 180 m/min. (590″/min)
