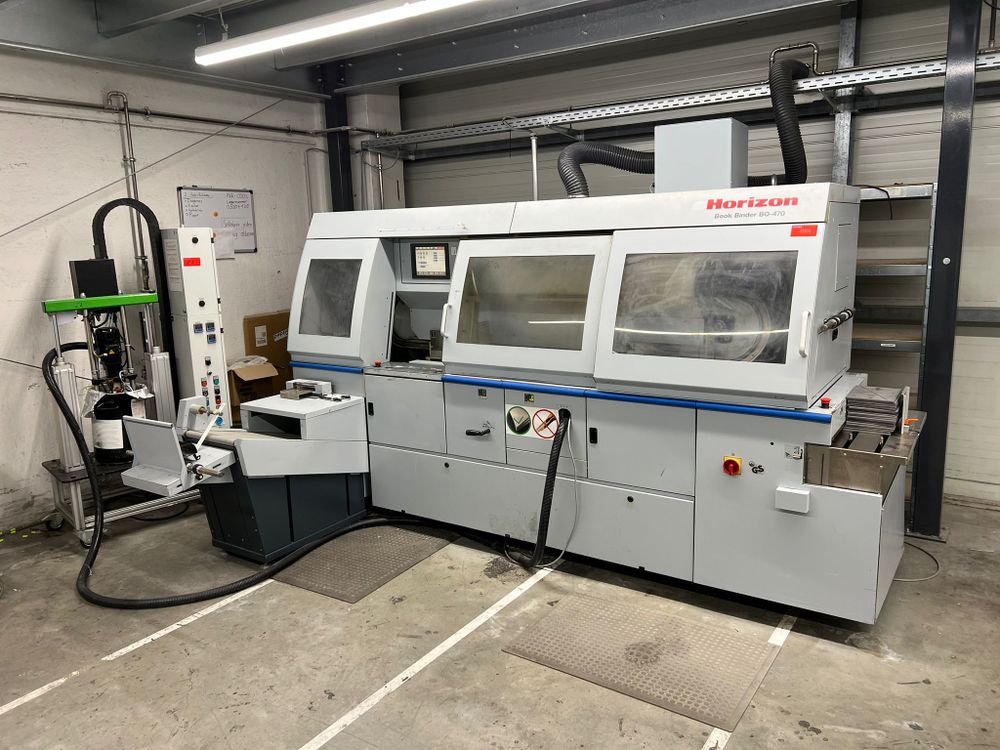

Horizon Book Binder BQ-470

Weight 2170 kg + 150 kg melt
Size L363 x W280 x H200
Power connection 400 V
Power consumption 4.8kW BQ470, 4.4kW melt
Number of pliers 4
Heating time approx. 50 minutes
Book thickness 1-65mm
Book format max. 320 x 320
Compressed air requirement 6 bar
Heating- Adjustable from 100 - 200 degrees
Adhesive type EVA hotmelt for side gluing.
Adhesive temperature EVA 120 degrees
Adhesive temperature PUR Up to 130 °C
Glue plant PUR
Maximum output: 1,000 cycles/h.
Max envelope 320x660 mm
Min cover 135x225
Creasing 4-way creasing positive/negative. 2-way creasing opt.
Envelope feeder suction drum feeder, loading capacity 150 mm
Cover thickness 90 g/m²
Cover thickness max. 300g/m²
