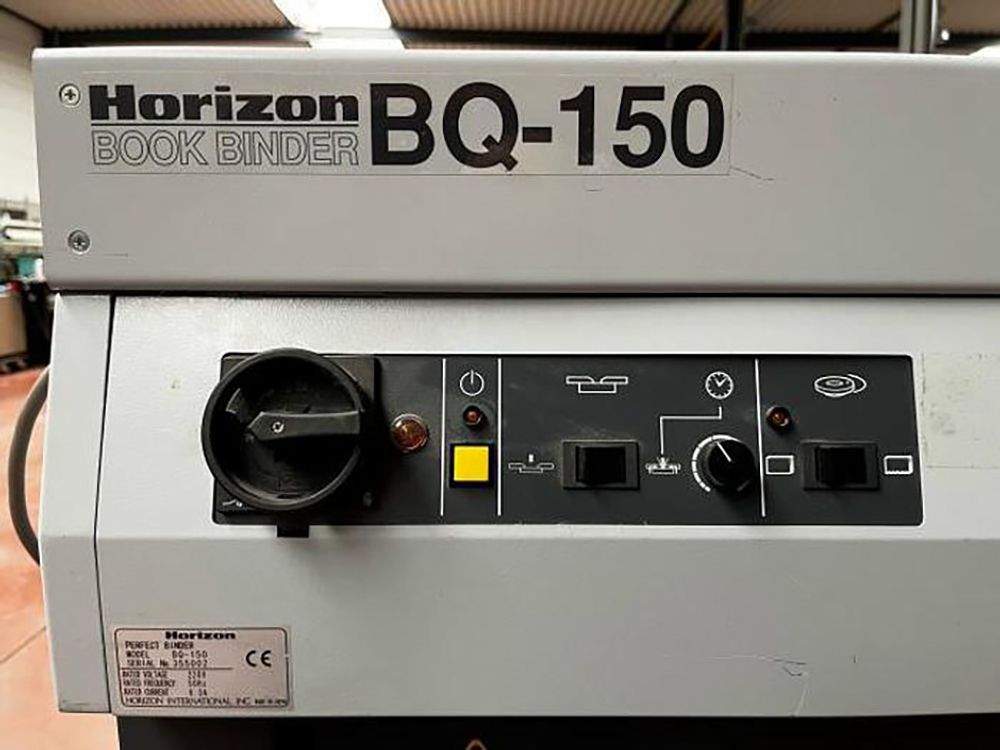

Horizon BQ-150

Single-Clamp Perfect Binding Machine
Format: 300x400mm, Hot Melt Glue
The cover stock is glued to the spine of the book and clamped for a clean, square finish.
Simple to operate, the Horizon BQ150 perfect binding machine requires no special skills and can be operated simply by reading the instruction manual.
The book spine is notched using a rough cutter for excellent glue penetration and a truly solid binding to ensure a perfect finish.
The Horizon BQ150 features a unique and powerful clamping mechanism that produces a clean and professional book spine with every bound document.
Spine thicknesses range from 1 to 30 mm, and the maximum spine length is 320 mm.
The maximum operator speed for this machine is approximately 200 cycles per house for perfect binding and 120 cycles per hour for padding.
The Horizon BQ150 warms up in approximately 20 minutes, making it an ideal solution for short-run digital perfect binding.
A particular advantage of the Horizon BQ-150 is its ability to bind A4 landscape books. Most large binderies do not have this capability.

Three types of binding can be performed on the Horizon BQ-150:
Perfect Binding - With full wrap-around cover
Spine Taping - Using clear PVC cover sheets for stunning presentations
Padding without cover - For office notebooks
Book Size (Max.) Width 400 mm (15.7") Book Size (Min.) Width 70 mm x Height 128 mm (2.7" x 5.0")
Cover Size (Max.) Width 400 x Length 620 mm (15.7" x 24.4")
Cover Size (Min.) Width 100 x Length 200 mm (3.9" x 7.8")
Cover Sheet Weight Range 70–260 kg (80 g/m²–300 g/m²)
Book Thickness 1–30 mm (0.04"–1.1")
Adhesive Hot Melt Glue
Glue Temperature 160–200 degrees Celsius
Warm-up Time 20 min.
Production Speed Padding 110 books/hour Perfect binding 180 books/hour
Power requirements: 220 V 50 Hz 6.3 A / 240 V 50 Hz 6.3 A / 120 V 60 Hz 11.4 A
Power consumption * 1.2 kW
Motors: 150 W x 2, 90 W x 1, 40 W x 1, 25 W x 1, 6 W x 1
Heater: 700 W x 1
Machine dimensions: 1380 (W) x 525 (D) x 1025 (H) mm (54.3" x 20.6" x 40.3")
Machine weight: 200 kg (441 lb) *
The energy consumption described here is the average figure per hour.
Machine design and specifications are subject to change without notice.
