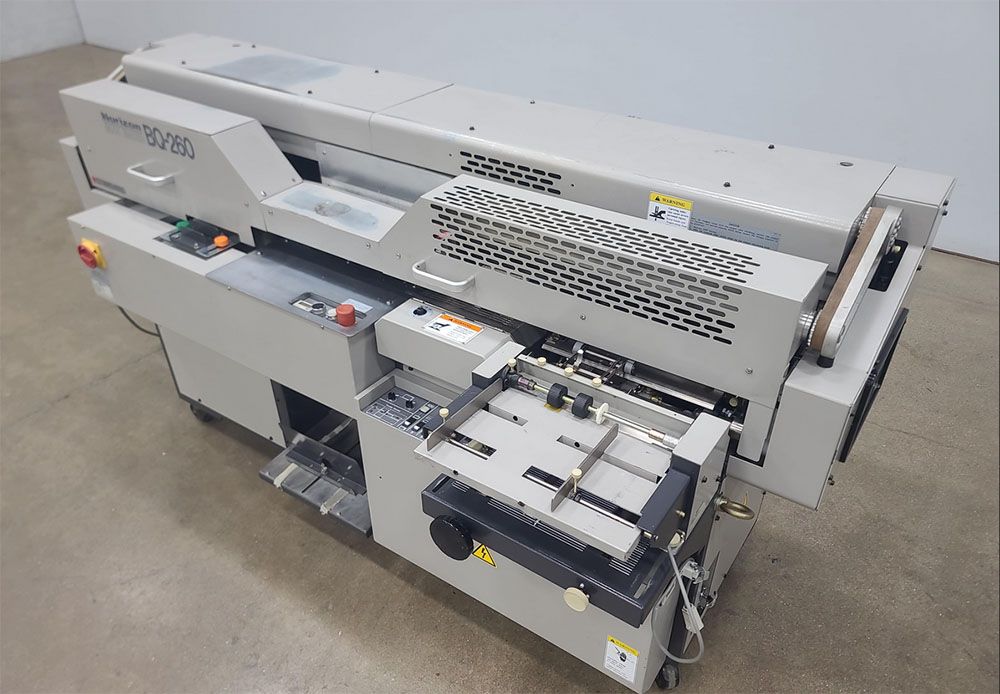

Horizon BQ-260

Automatic Perfect Binder Book Binding System w/ CF-220 Cover Feeder
Included Components:
BQ-260 perfect binding unit
CF-220 friction cover feeder
Milling and roughening station with dust extraction
Hot melt glue tank and application system
Nipping/pressing station
Delivery stacker

Features :
Single-clamp automatic perfect binding system
Integrated milling station for improved glue adhesion
Hot melt spine gluing with optional side gluing capability
Automatic cover feeding and scoring via CF-220
Centralized control panel with digital counter and job setup
Compact footprint suitable for small to mid-size operations

Typical Applications :
Perfect bound books and booklets
Manuals and technical documentation
Catalogs and magazines
Short-run digital print finishing
Commercial print bindery operations

Technical Specifications:
Binding method: Hot melt perfect binding
Number of clamps: 1
Maximum book size: 12.6″ x 12.6″ (320 x 320 mm)
Minimum book size: 2.9″ x 2.9″ (75 x 75 mm)
Binding thickness: 0.04″ – 1.6″ (1 – 40 mm)
Maximum cover size: 25.6″ x 12.6″ (650 x 320 mm)
Minimum cover size: approx. 10.2″ x 7″ (260 x 120 mm)
Maximum cover stock weight: approx. 230 gsm
Production speed: up to 600 books/hour (without milling)
Production speed: approx. 410 books/hour (with milling)
Functions: milling, gluing, cover feeding, pressing, delivery
Power requirement: approx. 400V, 3-phase
Machine dimensions: approx. 90″ x 48″ footprint (2290 x 1230 mm)
Weight: approx. 1,260 lbs (572 kg)
