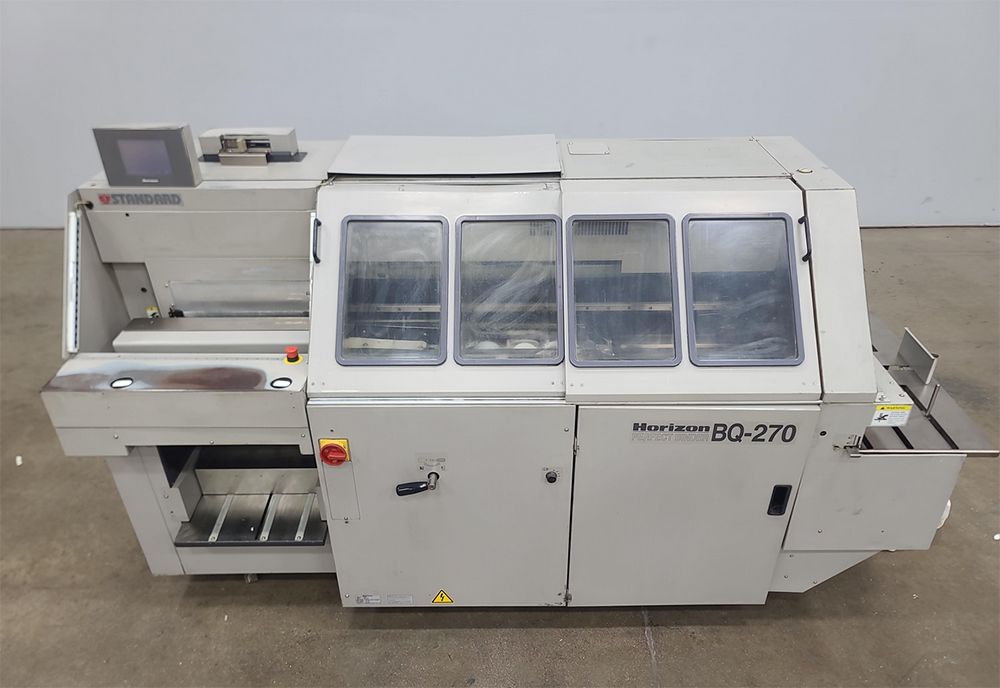

Horizon BQ-270 w/ SI-270 & ETG-302A

BQ-270 Automatic Perfect Binder w/ SI-270 Automatic Thickness Caliper & ETG-302A Transformer
Included Components:
SI-270 Automatic Thickness Caliper
ETG-302A Transformer
Integrated touchscreen control interface
Inline cover scoring system
Rotary suction cover feeder

Features :
Automatic setup through touchscreen controls
Single-clamp perfect binding system
Automatic book thickness measurement and adjustment
Binding with milling, without milling, or padding modes
Inline cover scoring and automatic cover feeding
Compact industrial bindery configuration

Applications :
Short-run digital book production
Commercial print finishing
Perfect bound manuals and catalogs
Print-on-demand publishing
Bindery and finishing operations

Specifications :
Book thickness range: 1 mm to 50 mm (0.04in to 2.00in)
Maximum production speed: up to 500 cycles per hour
Maximum book block size: 320 x 320 mm (12.59in x 12.59in)
Minimum book block size: 135 x 105 mm (5.32in x 4.14in)
Maximum cover size: 320 x 660 mm (12.59in x 25.98in)
Cover stock range: 82 to 302 gsm
Power requirements: 220/230/240V, 3 Phase
Rated current: 12.8A
Machine weight: approximately 900 kg (1,980 lbs)
