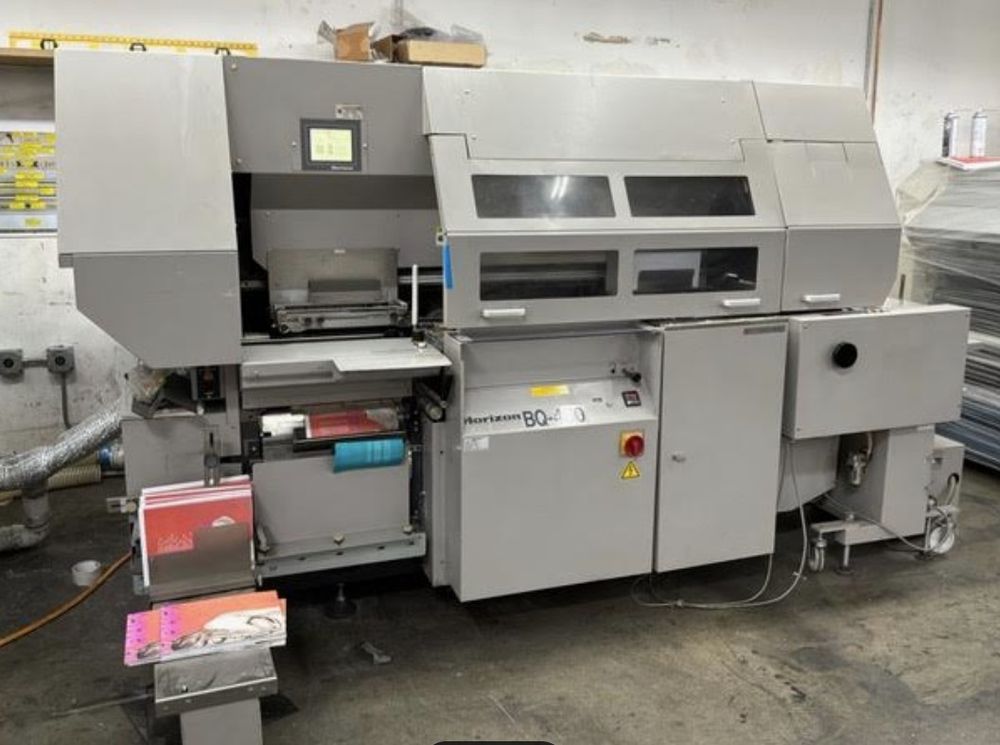

Horizon BQ-460

4-Clamp Perfect Binder
Specifications:
- Number of Clamps 4
- Book Block Size (Top-Bottom x Fore-Edge) Max. 320 x 320 mm (12.59′′ x 12.59′′)
- Min. 110 x 145 mm (4.34′′ x 5.71′′)
- Binding Thickness 1 to 55 mm (0.04′′ to 2.16′′)
- Cover Size (Top-Bottom x Fore-Edge) Max. 320 x 650 mm (12.59′′ x 25.59′′)
- Min. 145 x 260 (230) mm (5.71′′ x 10.24′′ (9.06′′))
- *230 mm (9.06′′) requires small size spring.
- Cover Weight Range Normal Paper 82 gsm (22 lbs.) or up
- Coated Paper 105 to 302 gsm (27 to 78 lbs.)
- Cover Pile Height Max. 200 mm (7.87′′) (CF-460V)
- Production Speed Max. 1,350 cycles/hr.
- Voltage / Frequency 3-Phase 200 V, 50 / 60 Hz
- 3-Phase 220 V, 50 / 60 Hz
- 3-Phase 400 V, 50 / 60 Hz
- Rated Current 220 V, 50 Hz, 23.3 A / 60 Hz, 27.2 A
- 400 V, 50 Hz, 9.8 A / 60 Hz, 11.8 A
- Power Consumption 200 V, 50 Hz, 4.0 kW / 60 Hz, 4.4 kW
- 220 V, 50 Hz, 4.1 kW / 60 Hz, 6.0 kW
- 400 V, 50 Hz, 5.6 kW / 60 Hz, 6.7 kW
- Heat Output 9,650 kJ (2,310 kcal)
- Motors 2.2 kW x 1 / 0.75 kW x 1 / 0.4 kW x 1 / 0.2 kW x 1
- 90 W x 1 / 40 W x 1 / 25 W x 1
- Heater 2.4 kW x 1
- Machine Dimensions 2,996(W) x 1,621(D) x 1,588(H) mm (118.0′′ x 63.9′′ x 62.6′′)
- Machine Weight 1,500 kg (3,308 lbs.)
