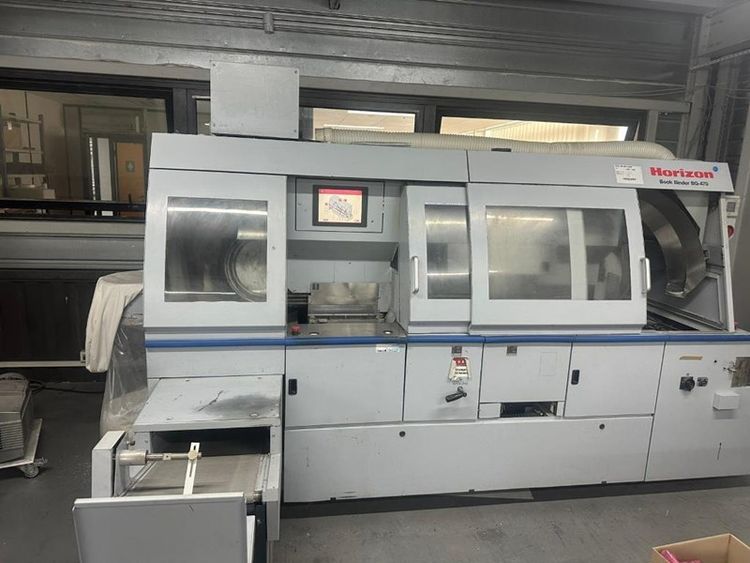

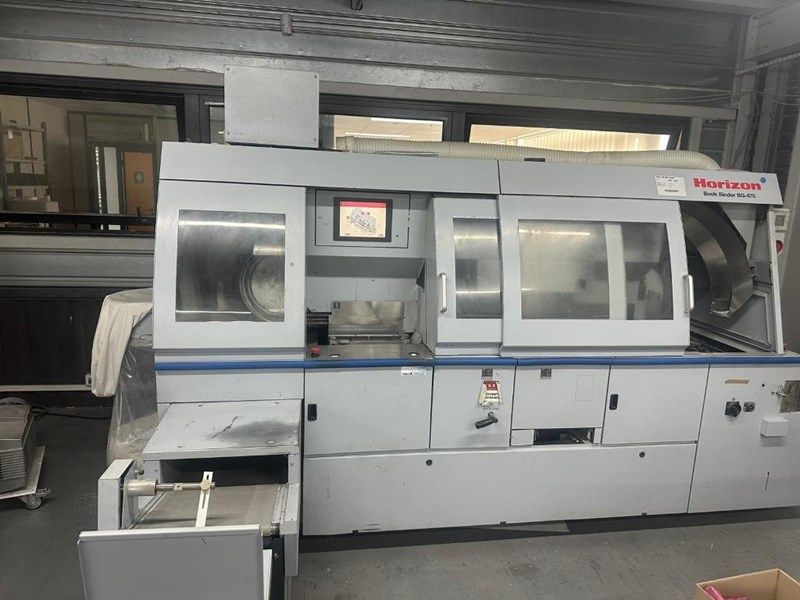

Horizon BQ-470D WITH EVA

Fully Automated 4-Clamp Perfect Binder
Counter: ca 4,4 mio Books

Specifications:
. Book size: Max 320x320 mm - Min 145x105 mm
. Cover size: Max 320x660 mm - Min 135x225 mm
. Book Thickness: 0,3 to 65 mm
. Milling depth adjustment from 0 to 4 mm
. Speed: 1,350 books per hour

Equipped with:
. Color Touchscreen panel
. Horizon T-470 Weekly Timer
. End-to-end Automated Set-up
. EVA Tank Horizon MU-470EVA
. Cover Feeder Suction
. 4 Clamps
. Lateral side Glue
. Delivery Conveyor
. Smoke Extractor
. Including: Tools and Manuals

Conected on line to:
2011 HORIZON HT-80
Automated Three-knife Trimmer

Specifications:
. Untrimmed Book size: Max 330x330mm - Mini 145x105mm
. Finished Book size: Max 300x300mm - Mini 139x99mm
. Cutting height: from 1 to 51 mm
. Speed: from 400 to 1000 / hour

Equipped with:
. Control panel with color touchscreen
. Automatic adjustment of cutting blades and pressure
. Straight (CV8-3) and Curve (CV8-L) cooling Conveyors
. Several Clamper plate / Cutting plate
. Including: Tools, Manuals, and Accessories
Full set of Straight and Curve cooling Conveyors
Fully cleand and refusbished
