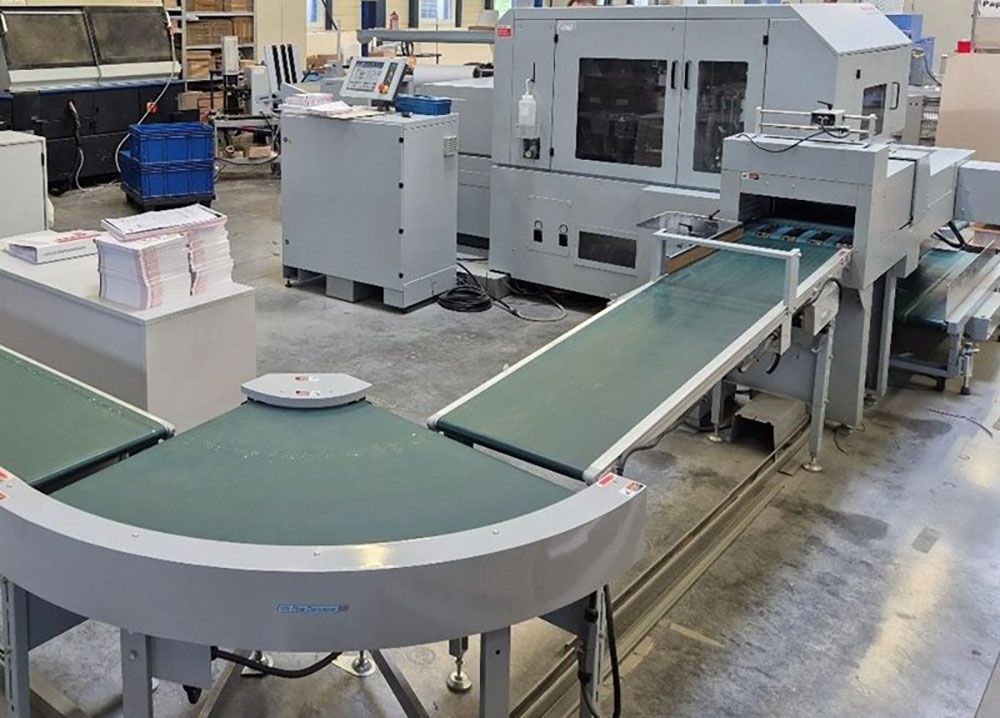

Horizon BQ 480 EVA / PUR + Inline HT-1000 Trimmer

Late model line in excellent condition!
Only 3.5m books produced!
Binder specification:
Book size, Max: 320 x 320 mm / Min: 145 x 105 mm
Open cover size, Max: 320 x 670 mm / Min: 135 x 225 mm
Book thickness : 1 to 65 mm
Mechanical speed, Max: 1,350 cycles/hr.
Trimmer specification:
Untrimmed Book Size: Max. Spine Length 350 x Fore-edge Length 320 mm/ 13.780” x 12.600”
Limitation: Maximum length from the center to top or bottom is 175 mm/ 6.889”.
Min. Spine Length 148 x Fore-edge Length 105 mm/ 5.825” x 4.130”
Limitation: The minimum length from the center to top or bottom is 74 mm/ 2.91”.
Trim Width: Fore-edge: Max. 110 mm/ 4.330” Min. 1 mm/ 0.04”
Top and bottom: Max. 80 mm/ 3.150” Min. 1 mm/ 0.04”
Trim Height: 1 to 65 mm/ 0.04” to 2.560”
Production Speed: 400 to 1,000 cycles per hour (Higher production can be reached with piled books)

Comprising:
BQ-480 binder with hand feed station and 4 clamps
Height adjustable LCD colour touchscreen for full automation of the following areas:
• Main clamp book width
• Milling head
• Spine glue length
• Cover size & scoring
• Cover nipping unit
• Book delivery width

Milling & roughing unit with dust bag extraction
EVA / PUR roller type spine gluing tank
EVA hotmelt side gluing discs with glue length cut-off
Auto suction cover feeder with scoring and double sheet detection
Auto calliper book measuring device, for quicker make-ready
Improved delivery table for gentle handling of thicker or PUR bound books.
Including accessories, tools & manuals.
CV Conveyor system with barcode to;
HT-1000V Automatic three knife trimmer
Setup automatically on the fly by reading a barcode at the entrance of the trimmer.
Also capable of automatic set-up from the operator panel for same size production runs.
One-to-one book production with variable sizes can be produced.
Both untrimmed and trimmed sizes can be variable, for true variable format production.
Can be used solo or placed in-line with Horizon perfect binders.
Including accessories, tools & manuals.
