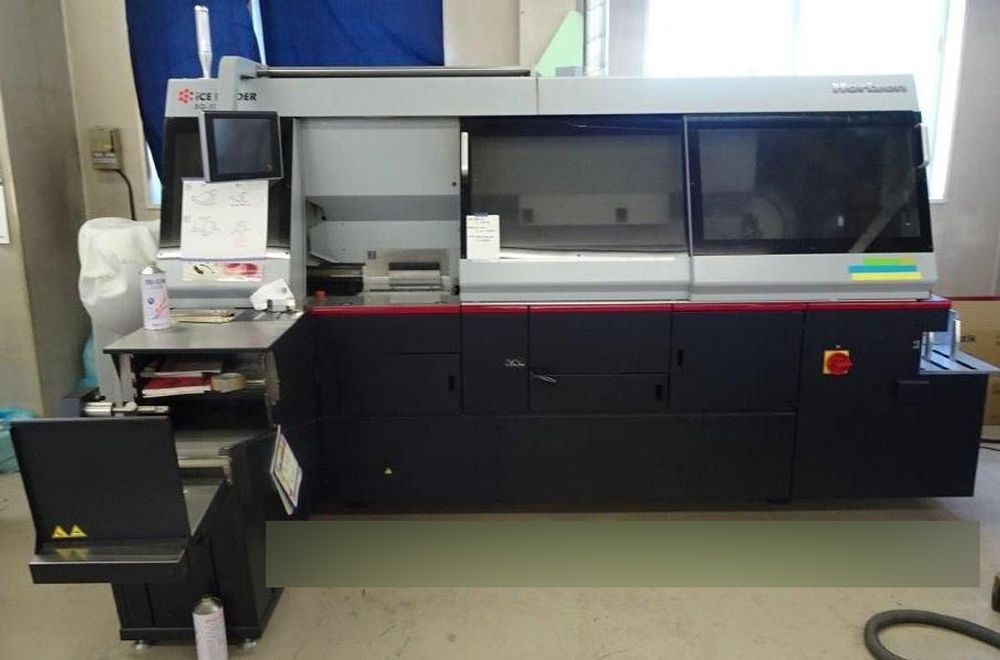

Horizon BQ500

EVA or PUR Perfect Binder
Condition Used
Binding Type Binding with milling, Binding without milling and Pad binding
Glue Type EVA Glue or PUR Glue
Number of Carriage Clamps 4
Book Block Size Spine Length x Fore-edge Length Max. 12.59” x 12.59” Min. 5.71” x 4.14”
Book Block Thickness Min. 0.04" Max. 2.56"
Cover Size Length x Width Max. 12.59” x 26.37” Min. 5.32” x 8.86”
Cover Weight Range:
Normal Paper 81.4 to 302.4 gsm
Coated Paper 104.7 to 348.9 gsm

Cover Stack Height Max. 5.9"
Cycle Speed Cover Binding (EVA) glue Max. 1,350 cycles per hour (EVA)
Cycle Speed Cover Binding (PUR) glue Max. 1,000 cycles per hour (PUR)
Cycle Speed Pad Binding Based on cover binding (The glue temperature diff ers depending on conditions)
Cycle Speed Lining Binding Max. 900 cycles per hour
Cycle Speed Variable Binding Max. 810 cycles per hour (when diff erence in thickness is 5 mm or less) (You will need the optional SI-500A Book Thickness Input Caliper for this function.)
Voltage/Frequency 3-phase 200-208 V, 60 Hz; 3-phase 220 V, 50 or 60 Hz; 3-phase 400 V, 50 or 60 Hz; (An external transformer is necessary for 220 V or 400 V)
Dimensions Delivery Conveyor (long type), and milling blower duct: 3,670 (W) × 2,340 (D) × 1,840 mm (H) (+ pole lamp 215 mm) or 144.5” (W) x 92.2” (D) x 72.5”(H) (+ pole lamp 8.5”)
Dimensions delivery stacker and milling blower duct delivery stacker and milling blower duct
