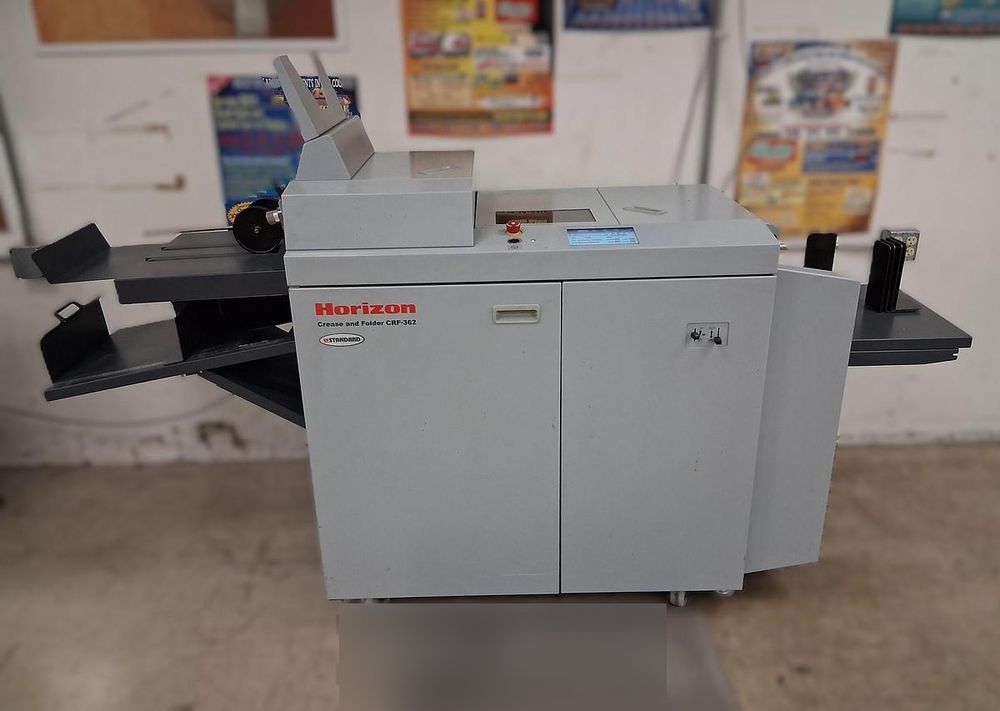

Horizon CRF-362

The Horizon CRF-362 is a commercial creaser/folder designed for high-quality creasing and folding
of digital and offset print output, suitable for restaurant menus, greeting cards, book covers, and marketing collateral.
Combines creasing, folding, and optional perforation in one pass for efficient postpress processing
Uses impact scoring technology to avoid cracking on digitally printed stocks
Supports up to 10 crease lines per sheet with up/down creasing options
Two fold knives for high-quality folding, even on heavy stocks
7 selectable fold patterns and 6 cover creasing patterns (spine, hinge, flap) for perfect binding
Optional impact perforation unit for full-width perforation or reduced perforation
Sheet size range: Max 14.33" W × 34.05" L (364 × 865 mm), Min 4.14" W × 7.09" L (105 × 180 mm)
Stock weight range: 80–350 gsm with folding; 80–400 gsm without folding
Feeder: Air suction feed belt, max stack height 5.9" (150 mm)
Production speed: Up to 5,000 sheets/hour (A4, 1 crease + 1 fold)
Crease thickness: 0.5 mm, 0.8 mm (standard), 1.3 mm, and 2.0 mm options
Crease distance: Adjustable from 0.1 mm in 0.1 mm increments
Weight: ~760.6 lbs (345 kg)
Dimensions: ~108" L × 27.6" W × 56.3" H
