Horizon HAC-15a/m, SPF10II, FC10II

Weight 886
Investor system friction
Double sheet control Yes
Missing leaf control Yes
Format max. 31.8x47
Format min. 14.8x21
Stapling station / folding station SPF 10 II
Loading capacity 40 mm
Paper weights 40-200g/m²
steering digital
Trimmer FC 10 II
Tower 2 x 15 stations a/m
Preselection counter Electronic

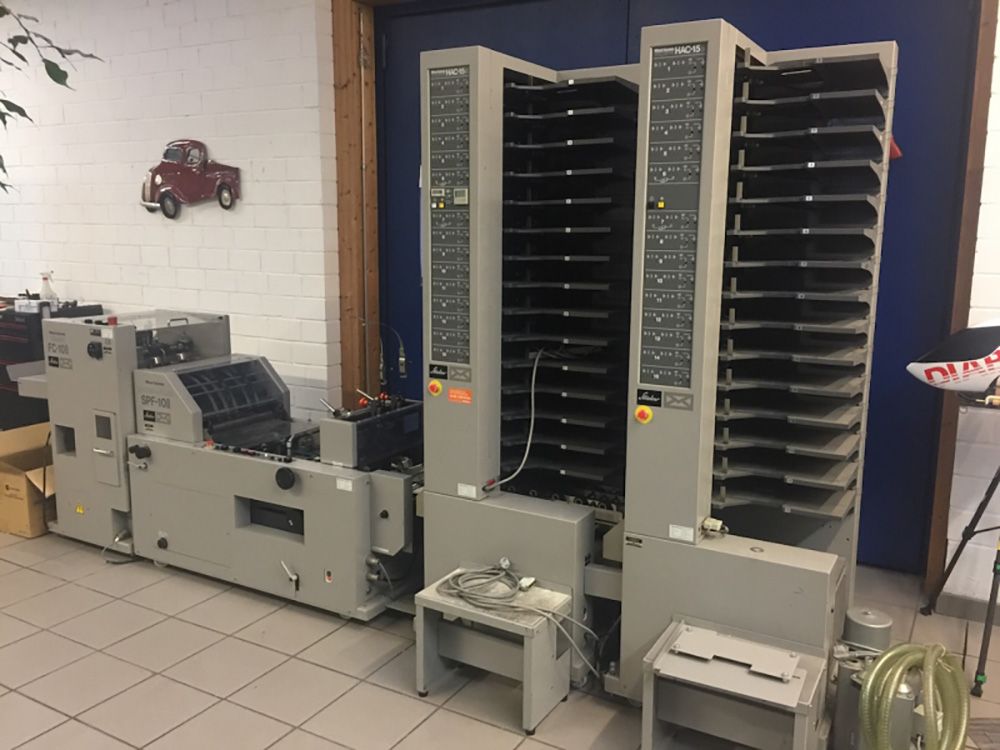

Horizon HAC 15 Tower a , 15 stations, friction feeder
Horizon HAC 15 Tower b , 15 stations, friction feeder
Horizon SPF10II stapling/folding
Horizon FC 10II trimmer front trimming

HAC-15 as a booklet production system.
Combined with the SPF10II stitch-folding unit and the FC 10II front trimmer (optional),
a Horizon collator is transformed into an inline booklet production line in no time.
The two additional units can be connected and disconnected without tools in just a few minutes.
Professional-quality brochures are produced in a single step, from collating to final trimming.
The possibility of non-stop operation thanks to the dual-cycle program and the booklet program significantly increases performance.
Full performance in the smallest space.
Thanks to its tower design, the HAC 15 requires only a minimal footprint.
Even in the maximum configuration with four towers, it only takes up 2 square meters.
