Horizon HOF 400 Saddle stitcher

HORIZON HOF 400 SHEET FEEDER w/ COVER FEEDER INTO A HORIZON 2014 HORIZON STITCHLINER 5500
ONLY 2.68 MILLION BOOKS RUN TOTAL!

HORIZON HOF – 400 SHEET FEEDER FEATURING CF 400 COVER FEEDER :
Fast, accurate, and flexible, the Horizon HOF-400 high speed feeder is ideal for digital booklet production.
The system is compatible with functions such as cover feeding, sheet insert, variable page count, bleed trimming, and creasing for digital printing.

HIGH SPEEDS:
High speeds: Capable of handling the output of multiple printers, the HOF-400 can feed at a speeds up to 25,000 sheets per hour (11” x 17”) or 35,000 sheets per hour (8.5” x 11”)!

SPECIFICATIONS:
MAXIMUM SHEET SIZE: 14″ x 24″
MINIMUM SHEET SIZE: 6″ x 8″
SHEET WEIGHT RANGE: 52 to 157 gsm

HORIZON STITCHLINER 5500 STITCH/FOLD & THREE KNIFE TRIM:
The Fully Automated StitchLiner 5500 is designed for the production of brochures at a production speed of up to 5,500 brochures per hour.
Control via a touchscreen with graphic symbols offers intuitive operation,
and along with the machine’s automatic setup system that doesn’t require tools, it guarantees short setup times between orders.

The StitchLiner 5500 represents a combination of high speed feeder for digital printing paper HOF-400 and a saddle stitcher
with a heavy duty three-knife trimmer, allowing for processing a wide range of paper in a broad spectrum of combination.

HORIZON STITCHLINER 5500 FEATURING:
AFC 30 ACCUMULATOR STACKER
***SPF 30S SADDLE STITCHER w/ 2 HOHNER UNIVERSAL 43/6S STITCH HEADS
HTS 30 THREE KNIFE TRIMMER
HORIZON SHINGLE DELIVERY
HORIZON TB TRIMMINGS BLOWER/WASTE REMOVAL SYSTEM
AT UP TO 5,500 BOOKLETS PER HOUR WITH QUICK -CHANGEOVER, THE STITCHLINER 5500 SADDLE SYSTEM IS IDEAL FOR SHORT,MEDIUM & LONG PRODUCTION RUNS!

The StitchLiner 5500 combines efficiency and ease of operation of flat sheet collating with the productivity, versatility and quality of a Horizon saddle stitching system.
At up to 5,500 booklets an hour it’s ideal for short, medium and long production runs.
The icon-based touch screen and automation allow even less experienced operators to quickly and easily set up a new booklet job.
Horizon’s 4-page signature concept scores and then folds, thus eliminating the time-consuming intermediate folding process required for 8- and 16-page formats.
The SPF-30 quick change saddle stitcher delivers high quality stitching on booklets up to 10mm thick.
The in-line three knife trimming provides complete, high-quality finishing on even the thickest booklets.

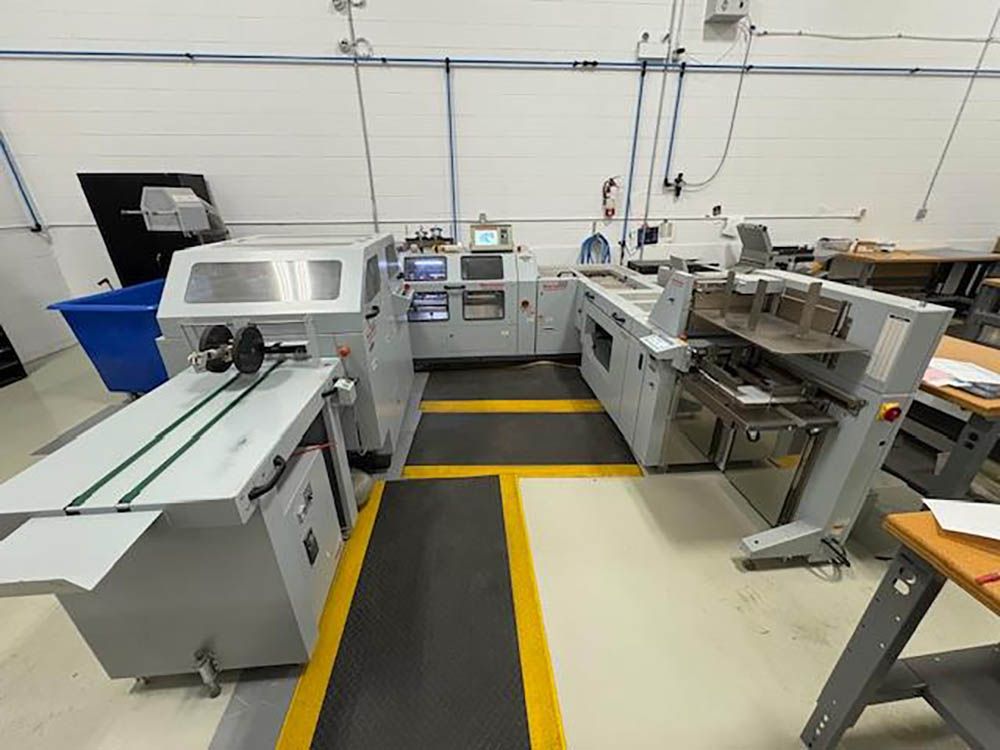

The U-shaped layout is floor-space efficient and very convenient for the operator to monitor the system without running back and forth.
Works from flat-sheet 4-page sections

Colour touch-screen
100 JOB Memory storage -for fast recall & set-up!
Simple, fast set-ups by non-specialist finishing operators
Advanced all-system automation
Make-ready in seconds, next-to-no-waste, on-demand working
Works from flat-sheet 4-page sections
No need to pre-fold
Integrated automatic set-up 3-knife trimmer
No need to pre-trim
Score, plough fold, registration, and genuine saddle stitch
High quality books with sharp spine definition
High efficiency from runs-of-one

SPECIFICATIONS:
MAXIMUM SHEET SIZE: 13.78″ W x 19.69″ L
BOOK BLOCK MINIMUM SIZE: 5.83″ x 8.27″
SPEED: UP TO 5,500 BOOKS PER HOUR
