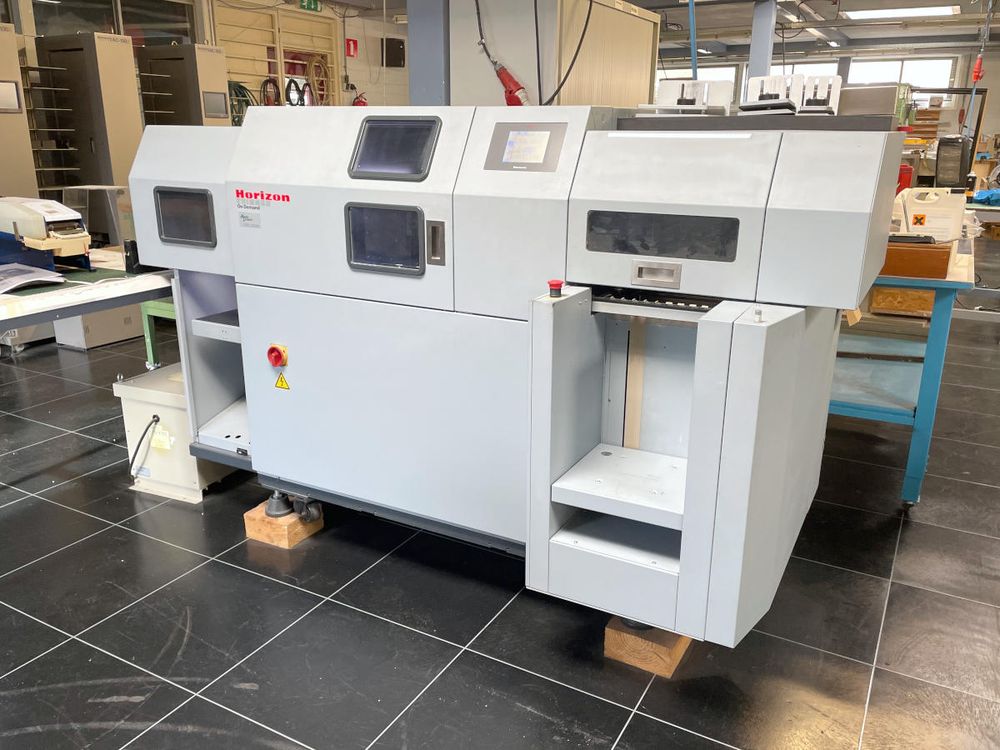

Horizon HT-30

The innovative HT-30 three-side trimmer performs book feeding, trimming, and stacking with full automation.
You simply place a stack of books on the in-feed table.
A suction feed system brings the books into position, where they are gripped by a robotic arm which advances the block for downstream processing.
The HT-30 can run unattended once it is setup and started, so the operator is free to perform book binding or other tasks.

Technical details:
Untrimmed book size
Max. 320 x 235 mm (12.600″ x 9.255″)
Min. 200 x 134 mm (7.870″ x 5.280″)
Trimmed book size
Max. 305 x 230 mm (12.010″ x 9.055″)
Min. 200 x 134 mm (7.870″ x 5.280″)
(148 x 134 mm / 5.830″ x 5.280″ at minimum by using the custom size table)
Landscape book size is A4 / B5 / A5 / 8.5″ x 11″ / 7″ x 8.5″
(by using the custom size table for each landscape size)
Max. trimming thickness 51 mm (2.0″)
Max. book pile height 300 mm (11.8″)
Production speed max. 400 books/hr. (book thickness 25 mm, 2 piled books) /
max. 500 books/hr. (book thickness 10 mm, 5 piled books)
Condition used
