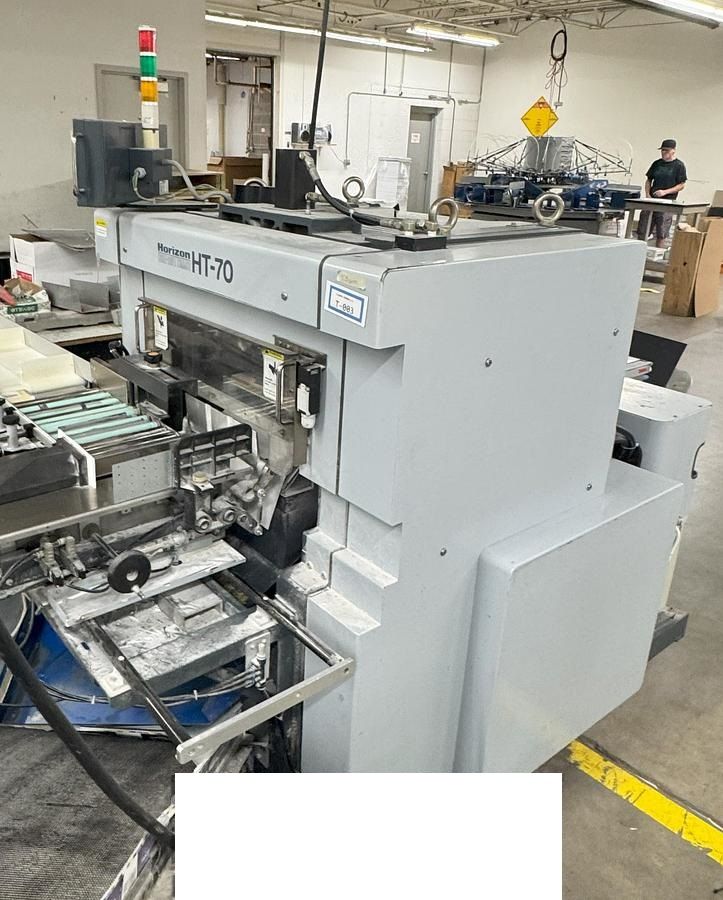

Horizon HT 70

The Horizon HT-70 is an in-line or off-line three-knife trimmer that produces precise,
clean cuts with no rough edges at speeds up to 1,000 cycles per hour.
The LCD display console steps the operator through set-up and changeover and provides continuous updates on system status.
The HT-70 will accept a variable lift size up to 50 mm (2”) thick.
Changeovers are accomplished in under 10 minutes, and all adjustments are external to the knife area for added safety.
An advanced interlock system provides enhanced operator safety.

Features:
Space-saving Design
The HT-70 is capable of doing big jobs but requires only a small amount of floor space, taking up 1/3 less space than all its competitors.
Easy Operation
The liquid crystal display panel gives simple instructions for guidance and ease in operation; no experience required.
Quick Adjustment to Book Size The HT-70 is quick to adjust to book size, taking less than 10 minutes per adjustment.
To add, for ease and safety, the cutting base does not require removal or replacement,
while the top and bottom guards can be adjusted from outside the machine.

Specifications:
Untrimmed Book Size: (Max. 330 x 330 mm (12.99” x 12.99”)) (Min. 148 x 105 mm (5.83” x 4.14”))
Trimmed Book Size: (Max. 300 x 300 mm (11.81” x 11.81”)) (Min. 142 x 100 mm (5.60” x 3.94”))
Trim Thickness: Max. 50.8 mm (2.0”)
Standard Size Trimmed by Standard Accessory: A4T / A4Y / A5T / A5Y / A6T / B5T / B5Y / B6T (T: Portrait, Y: Landscape)
Clamp and Pressure: Hydraulically Operated; Steplessly variable adjustment within the range from 1.5 to 9.8 kN (150 to 1,000 kgf)
Production Speed: Max. 800 cycles/hr. (A4T)
Table Height: 865 mm (34.0”)
Voltage / Frequency: 3-Phase 200 V, 50 / 60 Hz 3-Phase 220 / 240 V, 60 Hz 3-Phase 380 / 400 / 415 V, 50 Hz
Rated Current: 200 V, 50 / 60 Hz, 8.9 / 8.5 A 220 V, 60 Hz, 9.7 A 240 V, 60 Hz, 7.0 A 380 V, 50 Hz, 6.3 A 400 / 415 V, 50 Hz, 6.0 A
Power Consumption: 200 V, 50 / 60 Hz, 1.2 / 1.6 kW 220 V, 60 Hz, 2.85 kW 240 V, 60 Hz, 2.19 kW 380 / 400 / 415 V, 50 Hz, 3.3 kW
Heat Output: 3,190 kJ (760 kcal)
Motors: 1.5 kW x 1 / 0.75 kW x 2 / 60 W x 1 / 25W x 1
Machine Dimensions: 1,160(W) x 2,260(D) x 1,600(H) mm (45.7” x 89.0” x 63.0”)
Noise Level: LA peak : 91.1 dB / LAeq : 77.9 dB
Machine Weight: Main Body : 1,530 kg (3,373 lb.) Main Body : 1,530 kg (3,373 lb.)
