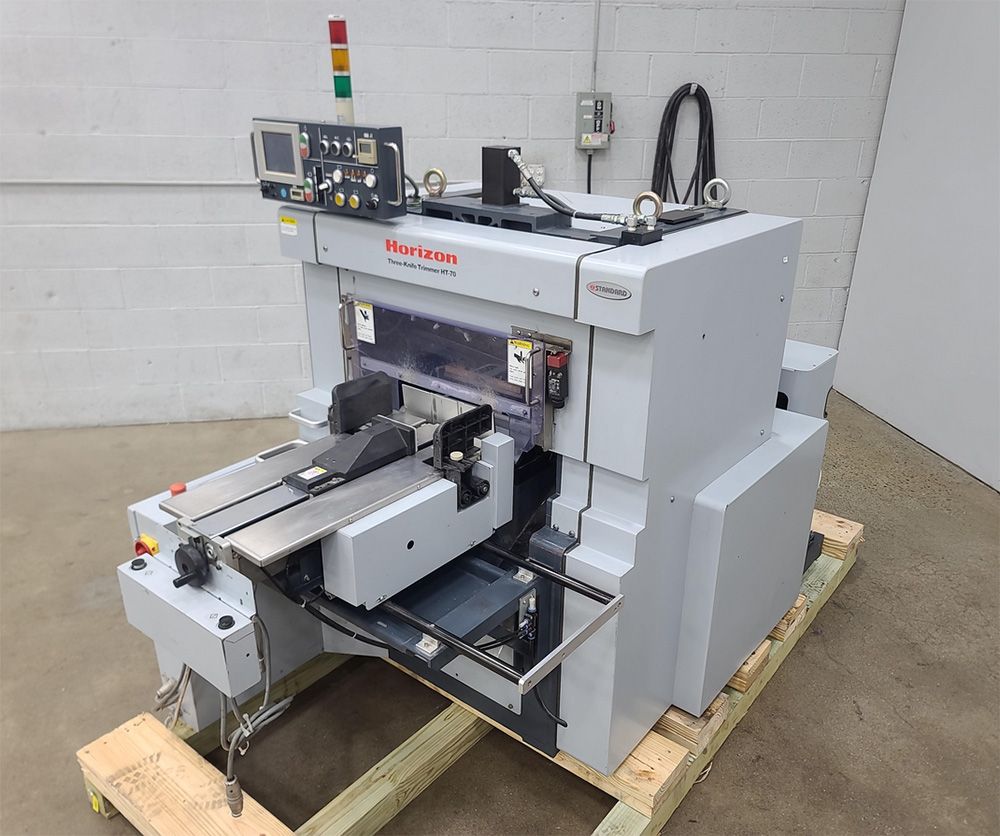

Horizon HT-70

Three-Knife Book Trimmer
Features:
Space-saving design, requiring 1/3 less floor space than competitors
LCD panel for easy operation and guided setup
Quick size adjustments: changeovers in under 10 minutes
Hydraulic clamps with stepless pressure adjustment (150–1,000 kgf)
Automatic conveyor system for aligned, neat finished booklets
Air-blown knife system for clean-up and maintenance
Advanced interlock system for enhanced operator safety
Capable of feeding multiple booklets simultaneously

Specifications:
Untrimmed Book Size:
Max 330 × 330 mm (12.99” × 12.99”)
Min 148 × 105 mm (5.83” × 4.14”)

Trimmed Book Size:
Max 300 × 300 mm (11.81” × 11.81”)
Min 142 × 100 mm (5.60” × 3.94”)

Trim Thickness: Max 50.8 mm (2.0”)
Standard Sizes: A4T / A4Y / A5T / A5Y / A6T / B5T / B5Y / B6T
Clamp & Pressure: Hydraulic, stepless adjustment 1.5–9.8 kN (150–1,000 kgf)
Production Speed: Max 800 cycles/hr. (A4T)
Table Height: 865 mm (34.0”)
Rated Current: 6–9.7 A depending on voltage/frequency
Heat Output: 3,190 kJ (760 kcal)
Motors: 1.5 kW ×1 / 0.75 kW ×2 / 60 W ×1 / 25 W ×1
Machine Dimensions (L × W × H): 2,260 × 1,160 × 1,600 mm (89.0 × 45.7 × 63.0”)
