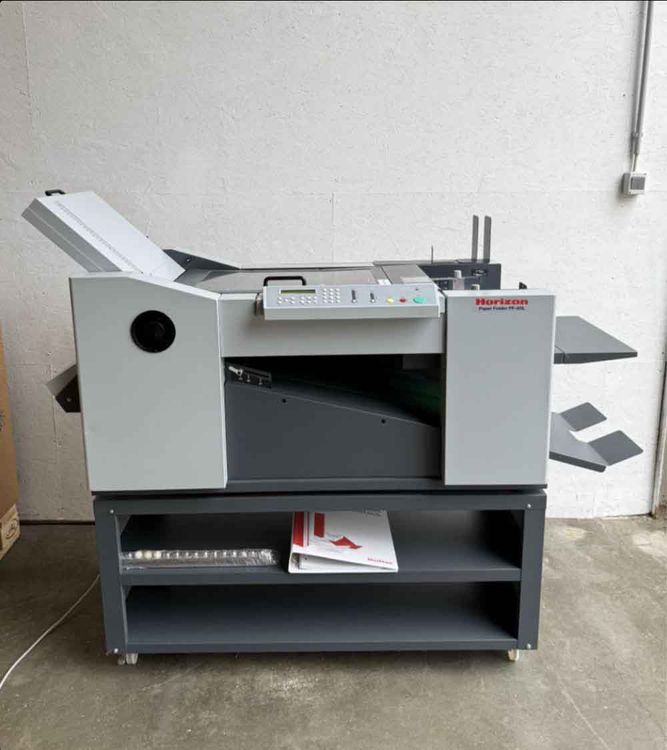

Horizon PF-40 L

Folding machine including mobile base cabinet
Quick and Easy Setup
Simply select sheet size and fold pattern and each section sets-up automatically.
The folder is equipped with 2 buckles to meet a variety of folds.
Fine-tune adjustment can be done at 0.1 mm for accurate folding.

High Performance Suction Rotor Feeding
Uniquely designed suction rotor feeding is employed to meet high speed production
up to 390 sheets per minute, wide range of paper stock can be fed with ease.

High Capacity Feeder
High capacity feed table (1,300 sheets of 64 gsm can be loaded) to minimize
sheet loading during longer production runs.

Accurate Sheet Registration
Registration guide ensures accurate sheet transportation and a high quality fold.

Specifications:
Sheet Feeding System: Air rotor system
Max. sheet size: 320 x 630 mm
Min. sheet size: 125 x 128 mm

Note:
The fold pattern is limited depending on the sheet length and the stopper adjustable range.
For a sheet 430 mm or longer, only sheets of up to 105 gsm can be folded.

Sheet weight range: 52 to 157 gsm
Max. feeder stack height: 105 mm

Fold Patterns:
Single fold, double parallel fold, short fold, accordion-fold, letter fold, open gate fold

Production Speed:
up to 270 sheets per minutes (A3 single fold)
up to 390 sheets per minutes (A4 single fold)
