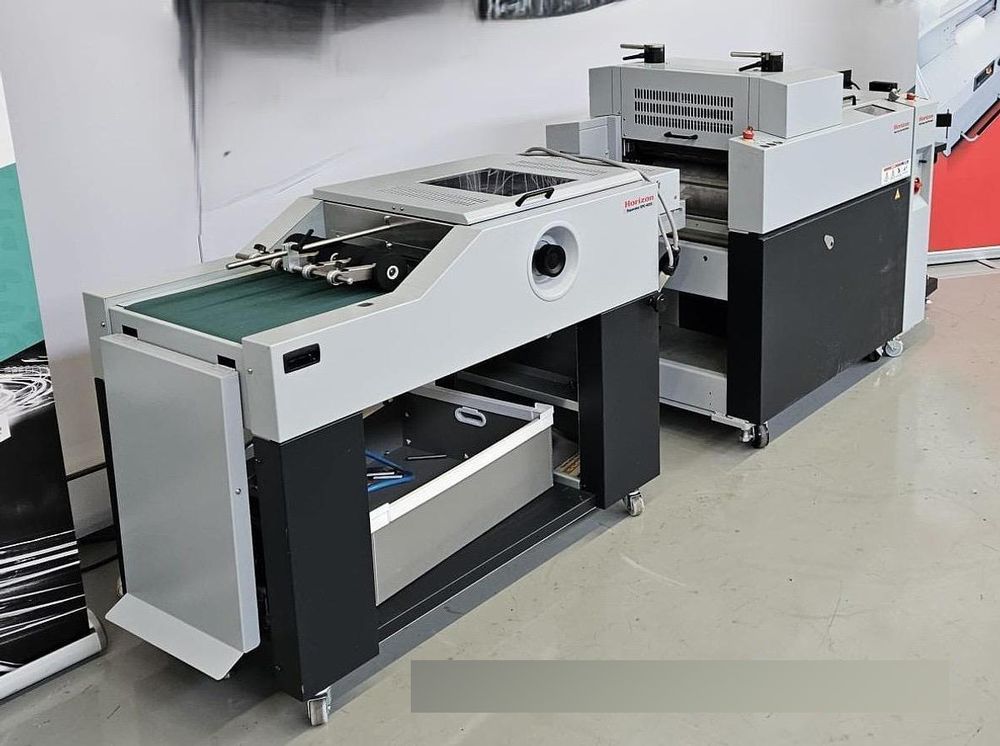

Horizon RD-4055 DM

Condition Used
Max. Sheet Size 15.74" x 21.65"
Min. Sheet Size 7.875" x 10.83"
Feeder Stacker Height 19.68"
Material Thickness 127.9 to 400gsm Die Cutting: Max. 0.5 mm or 0.019" Creasing: Max. 0.3 mm or 0.011"
Production Speed 6,000 cycles per hour
Double sheet detection Ultrasonic and mechanical
Processed Material:
Normal paper, Coated paper, Cardboard
The sheets below cannot be processed: Sheet whose back side is laminated (cover with polypropylene) Plastic film

Available Cutting Area 14.8" W x 20.8" L
Die Size - Upper Die Max. 15.74" W x 22.04" L Min. 6.30" W x 3.94" L
Upper Cutting Blade Height 0.0315"
Gripping width for Repeat Die Cutting 6.69"(includes the cut product at least)
Dimensions With separator: 141.2" W x 32.3" D x 47.1" H Weight: 1,962.45 lb
Air Requirements:
Rated Output of Prime Mover(Reference): 0.75 kW
Maximum Operating Pressure: 0.8 MPa
Minimum Required Pressure: 0.6 MPa or more Minimum Discharge: 85 Liters per minute Type: Oil-free Type
Electrical Single Phase 200 to 240 V, 50 or 60 Hz
