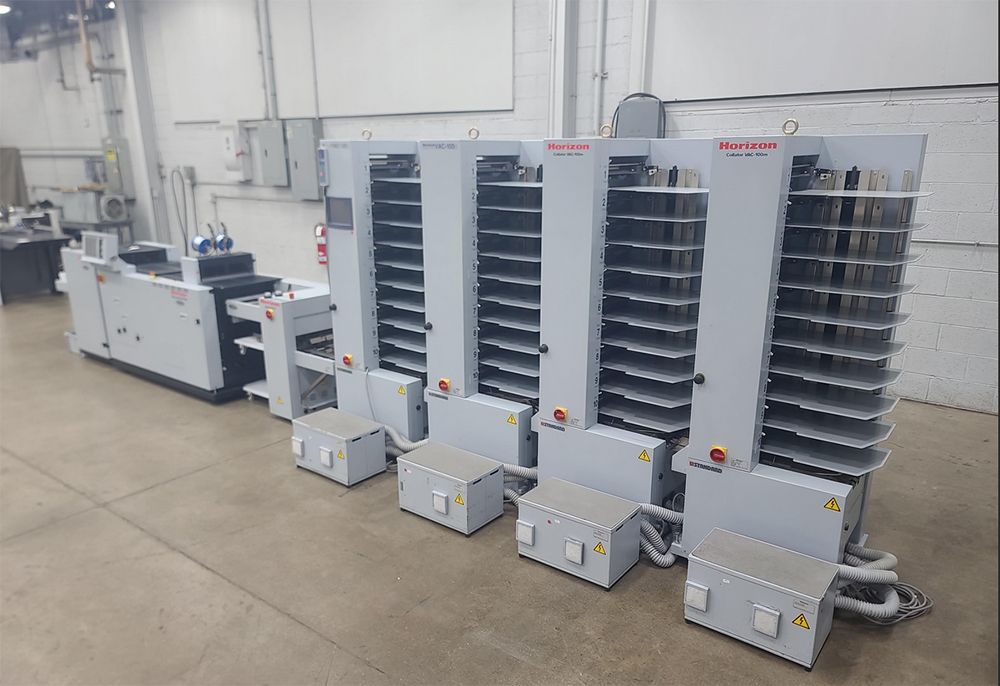

Horizon SPF-200A

Booklet Making System 4-Tower 40-Bin w/ Cover Feeder & Face Trimmer
Features :
40-bin air-suction collating system for accurate and reliable feeding
Fully automated booklet production from collating to finished output
Inline cover feeding for complete booklet assembly in one pass
Precision saddle stitching and folding via SPF-200A
Integrated face trimming for clean, professional edges
Stacker and conveyor delivery for efficient output handling
Touchscreen control interface for easy job setup and operation
Ideal for coated, offset, and digitally printed stocks

Typical Applications :
Booklets and catalogs
Instruction manuals and training materials
Marketing brochures and publications
Commercial print finishing

Technical Specifications :
Number of Bins: 40 (4 towers of 10 bins)
Feeding Method: Air suction (VAC-100m)
Maximum Sheet Size: approx. 12.6″ x 18″ (320 x 457 mm)
Minimum Sheet Size: approx. 4.7″ x 7.1″ (120 x 180 mm)
Collating Speed: up to approx. 5,000+ sets per hour
Booklet Production Speed: up to approx. 3,000–4,500 booklets per hour
Maximum Booklet Thickness: approx. 4 mm (0.16″)
Paper Weight Range: approx. 50 – 300 gsm
Trimming Type: Fore-edge trimming (FC-200A)
Power Requirements: 200–240V, 50/60Hz (varies by module)
