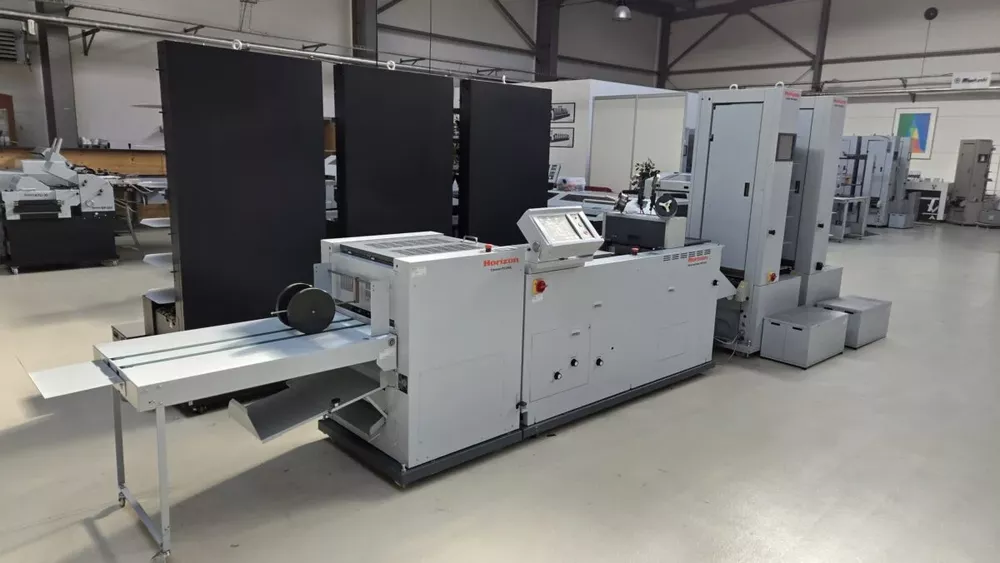

Horizon SPF 200L + VAC/HOF400

Counter: 17 946 000
Condition: Cleaned/Adjusted/Solid condition

SPECIFICATIONS:
Max. brochure size 356 x 610 mm or 14” x 24”
Min. brochure size 120 x 180 mm or 4.725” x 7.09”
Max. Booklet Size 356 x 305 mm or 14” x 12”
Min. Booklet Size 120 x 90 mm or 4.725” x 3.545”
Stitch Thickness Top/Side Stitch, Corner Stitch and Fold : Max. 4 mm or 0.155” (About 48 sheets of normal paper 64 gsm)
Fold Thickness (Saddle Stitch) :
Max. 2 mm or 0.075” (About 24 sheets of normal paper 64 gsm)
(About 16 sheets of normal paper 81.4 gsm)
Stitch Distance 73 to 290 mm or 2.875” to 11.4” Adjustable
Corner Stitching Position 3 to 15 mm or 0.12” to 0.59” Adjustable
Trim Width :
Max. 20 mm or 0.785”
Min. 2 mm or 0.075”
Column 1 Value 10 4 mm or 0.155”
Production Speed :
Max. 4,000 booklets per hour (A4-Finish, Portrait)
Max. 3,500 booklets per hour (A5-Finish, Portrait)
