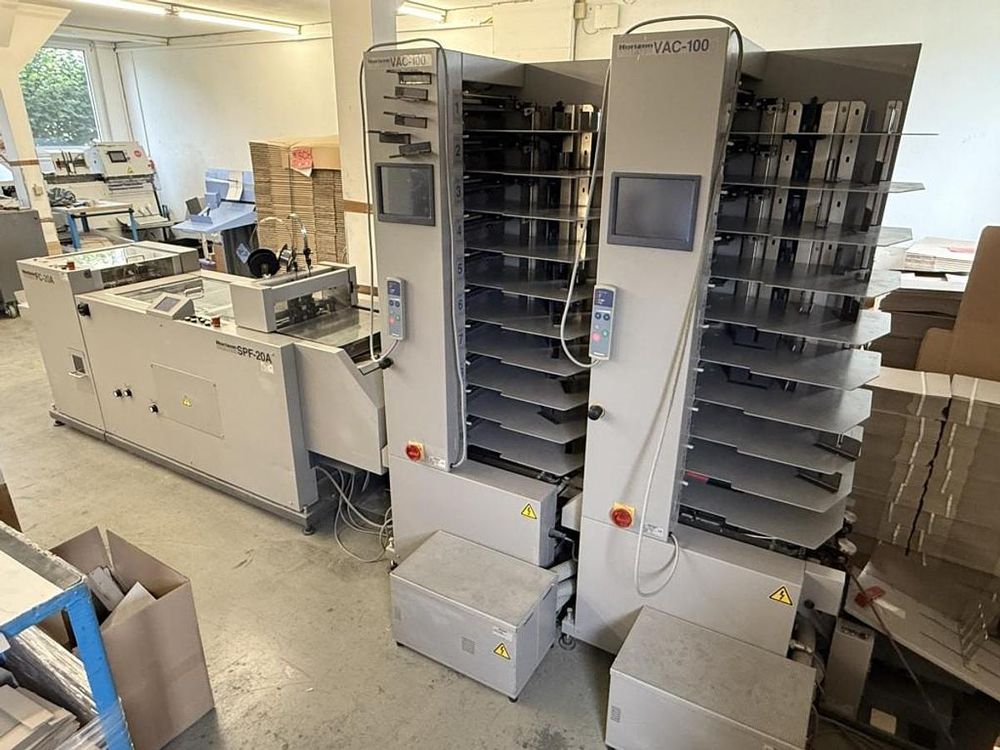

Horizon VAC-100 + SPF-20A u. FC-20A

Brochure production line consisting of:
VAC-100 vacuum collating tower (2 units)
SPF-20A stapling and folding module
FC-20A front trimmer

Technical data:
Horizon VAC-100 – vacuum collating tower
Function: Collating printed sheets
Number of stations per tower: 10 (20 in total with 2 towers)
Paper format: min. 120 × 148 mm, max. 350 × 500 mm
Paper weight: 52–208 g/m² (up to 300 g/m² in some cases)
Stack height per compartment: 55 mm
Production speed: up to 9,900 sets/hour
Control: touchscreen control panel

Horizon SPF-20A – Stapling and folding module
Function: Stapling and folding brochures
Stapling heads: 2 × Hohner 48/5
Paper size: 120 × 180 mm to 350 × 500 mm
Final format: 90 × 120 mm to 250 × 350 mm
Stapling thickness: max. 4 mm (stapling only), max. 2 mm (stapling + folding)
Stapling distance: 73–160 mm
Wire diameter: 0.5 mm
Production speed: up to 4,050 brochures/hour (A5), approx. 3,200 brochures/hour (A4)
Power consumption: approx. 450 W
Dimensions: 271 × 81 × 110 cm
Weight: approx. 490 kg

Horizon FC-20A – Front trimmer
Function: Front edge trimming of brochures
Brochure size: max. 250 × 20 mm; min. 85 mm
Trim size: max. 20 mm
Processing: min. 4 pages / max. 88 pages (at 80 g/m²)
Production speed: up to 3,400 cycles/h
Power supply: 230 V / 50 Hz, 0.2 kW
Dimensions: 610 × 810 × 1,070 mm
Weight: approx. 240 kg
