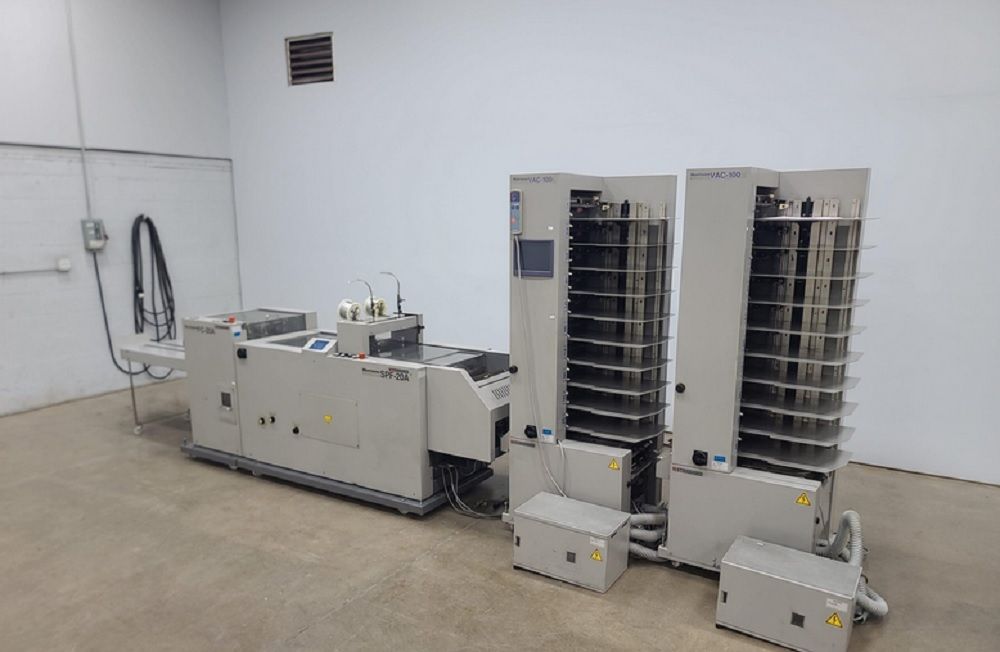

Horizon Vac-100

20-Bin Booklet Making System w/ SPF 20 Stitch, Fold, and Trim Unit
Sheet Size Max. 350(W) x 500(L) mm (13.7″ x 19.6″)
Min. 120(W) x 180(L) mm (4.8″ x 7.1″)
Finish Size Max. 250(W) x 350(L) mm (9.8″ x 13.7″)
Min. 90(W) x 120(L) mm (3.6″ x 4.8″)
Stitching Thickness Max. 4 mm (0.15″) (only for side stitch)
Stitching & Folding Thickness Max. 2 mm (0.07″)
20 sheets of 60 gsm
Stitching Distance 73 to 160 mm (2.9″ to 6.2″) Adjustable
Stitching Wire Standard : No. 25 (0.5 mm) (0.020″)
Option : No. 28 (0.4 mm) (0.016″)
Production Speed Max. 3,660 booklets/hr. (A4-Finish)
Max. 4,050 booklets/hr. (A5-Finish)
