Horizon VAC-100

Line Configuration :

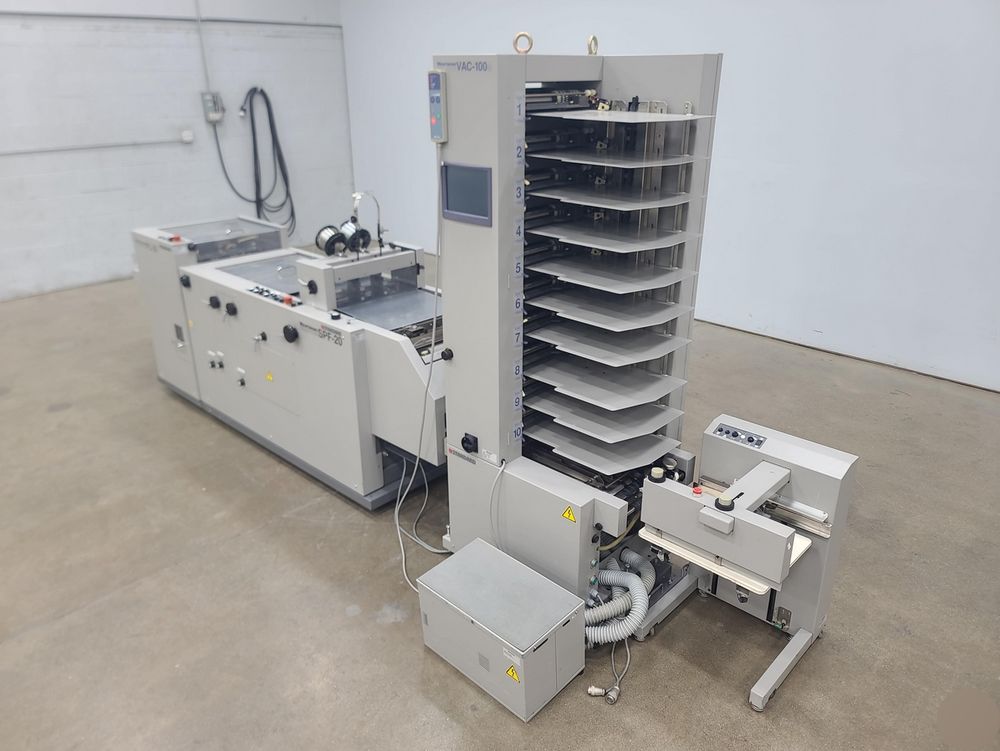

VAC-100a Air Suction Collator → SPF-20 Stitch & Fold Unit → FC-20 Fore-Edge Trimmer → ST-20R Stacker Receiving Tray

Included Components :
Horizon VAC-100a 10-bin air suction collator
Horizon SPF-20 stitch and fold unit
Horizon FC-20 fore-edge trimmer
Horizon ST-20R stacker receiving tray
VAC-100 air pump
Hohner stitching heads
Operator manuals and setup components shown

Features :
Air suction feeding system designed for reliable sheet separation
Saddle stitching and folding booklet production
Inline fore-edge trimming capability
Offset stacking delivery system
Adjustable guides and operator controls
Modular inline finishing configuration

Applications :
Commercial print finishing
Booklet and catalog production
Manual and instruction book assembly
Bindery and print shop operations
Short to mid-run stitched booklet work

Specifications :
Number of Bins: 10
Collator Rated Voltage: 220V
Collator Rated Frequency: 60Hz
Collator Rated Current: 6.8A
SPF-20 Rated Voltage: 220V
SPF-20 Rated Frequency: 60Hz
SPF-20 Rated Current: 3.4A
FC-20 Rated Voltage: 220V
FC-20 Rated Frequency: 60Hz
FC-20 Rated Current: 1.9A
