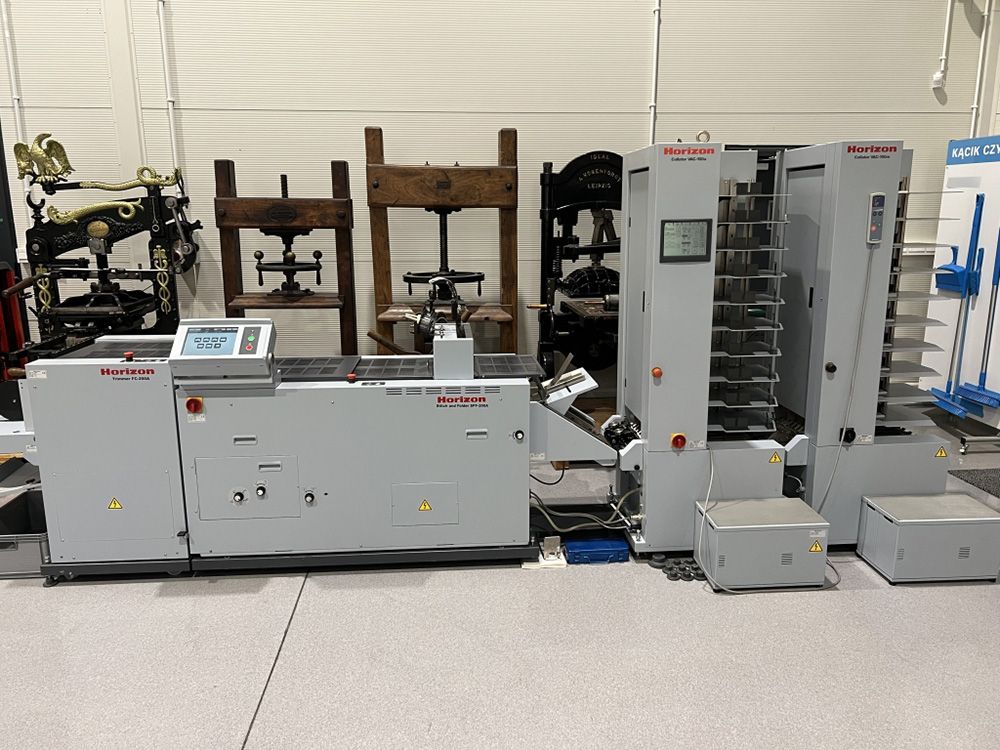

Horizon VAC-100a + VAC-100m + SPF-200a + FC-200a

Booklet Maker
The machine is fully operational and ready for production.
Very low mileage.
This is one of the newest Horizon models.
The entire machine is set up from the control panel.

The line consists of:
– Horizon VAC-100a / VAC-100m
Max size: 350x500mm
Min size: 120x148mm
Vacuum feeding
10 shelves
Stack height: 55mm
Basic weight: 40-270g
Power supply: 230V
Weight: 310kg/piece
Touchscreen control
Jam, double-feed, and no-feed sensors
Ability to save 9 preset jobs to the machine’s memory

Horizon SPF-200A
10.4″ color touchscreen
Non-stop operation thanks to the mis-assembly ejection function
Max size: 508x356mm; Min size: 180x120mm
Max speed: 4500 booklets/hour
Weight: 500kg
Stitching Wire-folding
Two Hohner heads
Up to 200 jobs can be saved in the machine’s memory.
Additional options include wire feed control and a block stitching module.

Horizon FC-200A
Cutting thickness 4-5mm
230V power supply
Weight 244 kg

New trimmer design, stable operation with servo motors, and additional booklet guide.
Touch panel for quick format changes.
Reset the machine to a different format with a single click.
The machine includes: LC-200 delivery, operating tools, spare parts, and documentation.
