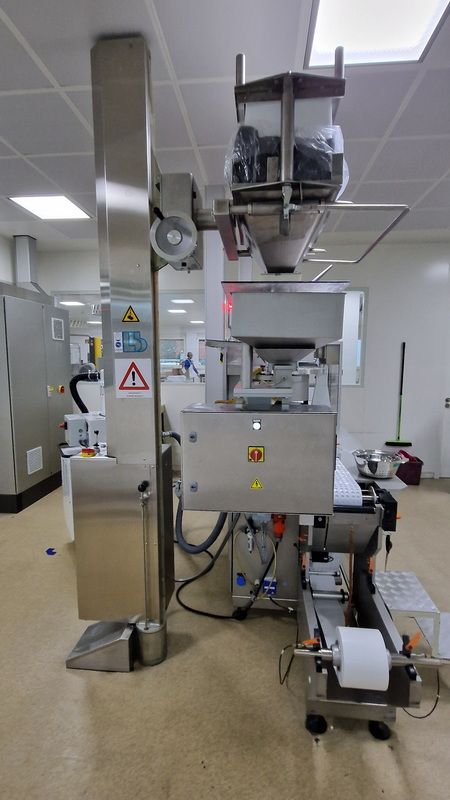

Horn N 916 Blister machine

Set up for aluminium/PVC/PVDC/PP, 1-lane
Roller sealing
Film width max. 160 mm
Film feed max. 138 m
Drawing depth max. 12 mm
Max. punching dimensions 150 x 136 mm
Max. output 70 moulding cycles/min, max. 200 punching cycles/min
Moulding film diam. 700 mm, cover film diam. 250 mm
3 product feeders: aligned feeder, roller feeder, brush box with separate control (new in 2012)
Single-colour printing unit for cover foil Hapa H-216-C, built in 2000, incomplete (without technical inspection)
Coding station with embossing unit
Perforating station
New in 2012: Laetus TLU LED PAL LXS MR colour camera with NAVIGATOR software and POLYPHEM wt evaluation unit/touchscreen for filling level control
New in 2014: Conveyor belt to downstream machine with blister separation
New in 2014, complete control system conversion by Romaco:
- Wiring
- Elau servo drives
- Elau PacDrive C400 A8 multi-axis controller
- 2x Elau PacDrive MC-4 servo controllers
- Wago 750-338 PLC fieldbus coupler
- HMI Micro Panel XVS 460
- Modem
Riedel cooling unit
Various spare parts
Various format tools for 2 x 5 tablets/capsules with blister sizes 77.5 x 31.4 mm, 79.5 x 30.0 mm, 102.0 x 42.0 mm, 102.0 x 57.0 mm (Completeness not guaranteed)
Drive 400V/50Hz
