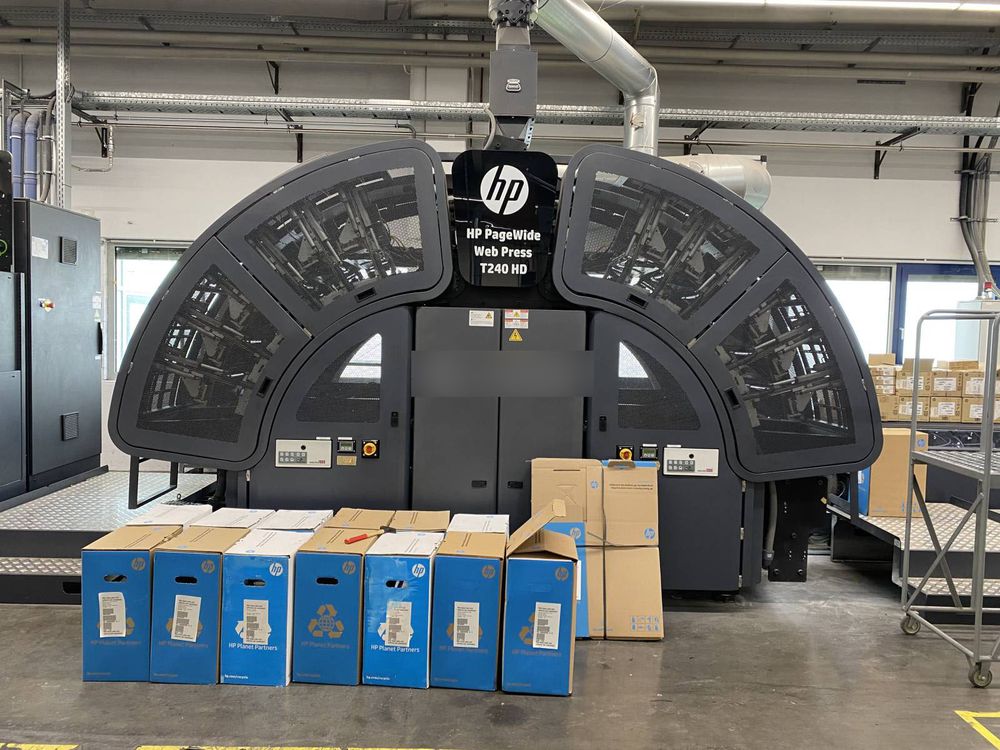

HP PageWide Web Press T240 HD

Unwinder (optional) :
Manufacturer: Hunkeler
Model: RS8 (-800) Generation 8
Year: 2018
Type: Non-stop splicing unwinder with two shaftless roll positions
Splicing: Automatic zero-speed diagonal butt splice at full process line speed, no overlap
Integrated Storage Festoon: Yes – eliminates need to stop for roll changes
In-Register Splicing: Available for pre-printed material
Maximum Splicing Speed: 243 m/min (800 ft/min)
Paper Web Width: 127–558 mm (5"–22")
Paper Weight: 50–300 g/m²
Maximum Roll Diameter: 1,270 mm (50")
Maximum Roll Weight: 907 kg (2,000 lbs)
Web Tension: 67–178 N (15–40 lbs)

Inkjet Web Printing Press :
Model: HP PageWide Web T240 HD
Year: 2019
Configuration: Roll-to-Roll, Full Color (CMYK)
Print Technology: Thermal Inkjet with HP High Definition Nozzle Architecture (HDNA)
Native Resolution: 2,400 nozzles per inch with up to 8× nozzle redundancy
Ink Type: Water-based HP pigment inks with HP Bonding Agent
Print Modes: Performance Mode (full speed, uniform high drop weight) and Quality Mode
(dual drop weight for highest quality)
Dryer Expansion Module: Included
Inline Process Control (IPC): Included – HP Quality Image Check (QUICK) Vision System
for real-time comparison of RIP output vs. printed image
Remote Ink Transfer Station (RITS): Included – 200-liter ink barrels (separate for each color and Bonding Agent)
Digital Front End (DFE): HP Color Print Server included
Remote Workstation Accessory: Included
Printbar Monitoring: Continuous color registration monitoring with active adjustment during print
Upgradeable to T250 HD: Yes – HP-performed upgrade brings HP Brilliant B60 Inks
(no primer needed on coated stock, expanded color gamut with deeper/more vibrant colors),
HP Color Vision System with advanced color camera and image capture, and increased productivity through elimination of priming unit

Rehumidifier :
Manufacturer: ELTEX
Model: Digimoister
Year: 2019

Web Inspection (optional):
Manufacturer: Hunkeler
Model: WI8 Web Inspection System

Web Buffer (optional) :
Manufacturer: Hunkeler
Model: WB7 Web Buffer System
Year: 2019

Postpress (optional) :
Available Configuration: Hunkeler PF7 Paper Folder + CS6 Cross-Cut Stacker for inline finishing

Technical Details :
Parameter Value
Maximum Speed (Performance Mode) 152 m/min / 500 ft/min
Maximum Speed (Quality Mode) 76 m/min / 250 ft/min
Maximum Monthly Output (Performance) 57 million A4 pages
Maximum Monthly Output (Quality) 31 million A4 pages
Paper Web Width 203–558 mm / 8"–22"
Maximum Print Width 521 mm / 20.5"
Printable Image Length 216–1,829 mm / 8.5"–72"
Paper Weight Range 40–215 g/m²
Supported Media Types Uncoated offset, inkjet-optimized coated, ColorPRO certified media
Colors CMYK (MICR optional with T250 upgrade)
Dimensions (W × L × H) 3 × 11.6 × 2.7 m (with optional unwinder and rewinder)
Operating Temperature 18–24 °C (optimal)
Relative Humidity 40–60 %
Electrical Supply (Press) 400–480 V, 3-phase
Electrical Supply (Unwinder) 400 V, 3-phase, 50/60 Hz, 80 A
Compressed Air (Unwinder) 5.5–6.2 bar / 80–90 psi
