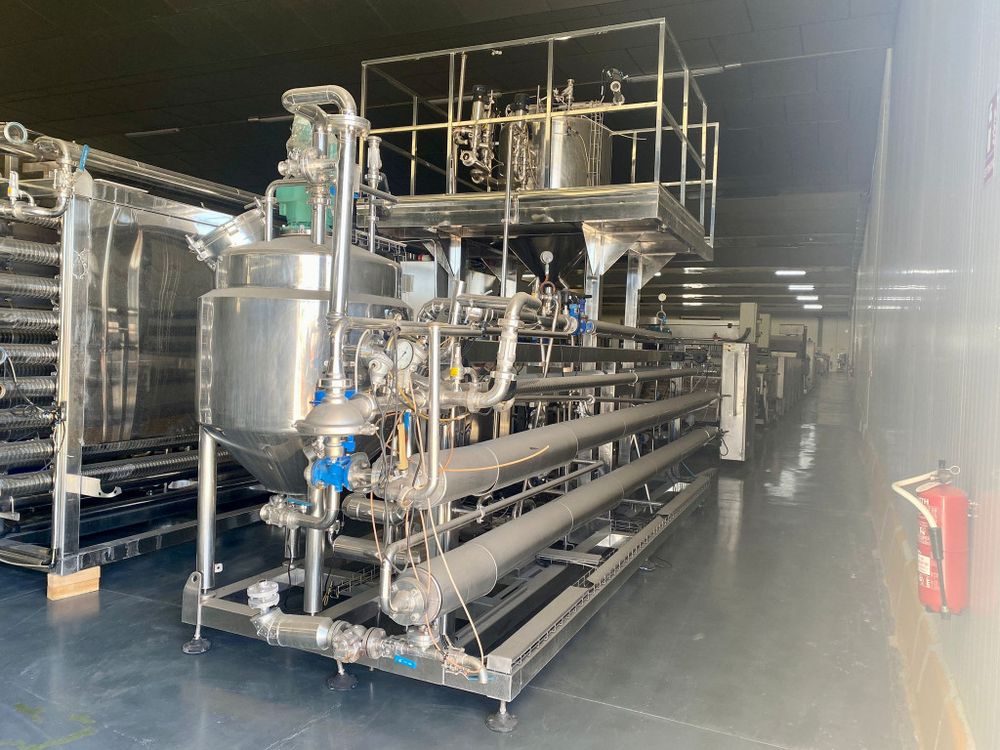

Hrs Aseptic Sterilizer for High-Viscosity Products

Main components:
Aseptic thermal treatment unit with scraped-surface system
Product feed pump
Feed tank
Deaerator (air removal system)

Technology and operation:
This sterilization system uses concentric tube or annular space heat exchangers,
specifically designed for high-viscosity products without particles.
The product flows through the central annular channel,
while the heating or cooling medium circulates through the inner and outer jackets,
ensuring efficient and uniform heat transfer.

Each stage of the process heating, holding, and cooling
can be individually adjusted to meet specific production requirements.
The unit supports HTST (High Temperature Short Time) thermal treatment,
ensuring effective pasteurization or sterilization
while preserving the product’s nutritional and organoleptic properties.

Feed pump:
Equipped with a high-pressure volumetric piston pump
with variable frequency drive (VFD),
capable of working at pressures up to 180 bar.
Especially suitable for dense and viscous products.

Typical applications:
Tomato paste and pulp
Ketchup and pizza sauces
Fruit purees and concentrates
Compotes and jams
Cream soups and sauces
Baby food
