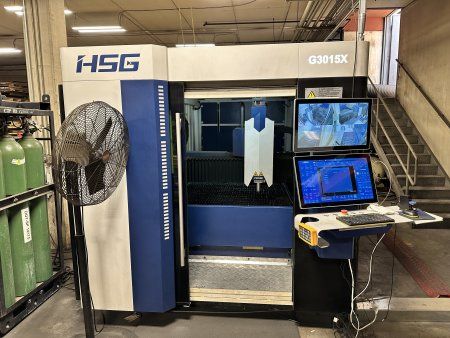

HSG Laser HS-G3015X Fiber CNC Controller

laser power: 6000 W
work area: 3048 x 1524 mm
max linkage speed: 140 m/min
max acceleration: 1.5 G
X/Y-axis positioning accuracy: 0.03 mm/m
X/Y-axis repeat positioning accuracy: 0.03 mm
drive system: servo motors (Panasonic-type)
carbon steel cutting capacity: up to 25 mm
stainless steel cutting capacity: up to 20 mm
aluminum cutting capacity: up to 20 mm
max table load: 800 kg
total power requirement: approx. 31–43 kW
electrical supply: 380 V / 3-phase / 50–60 Hz
machine dimensions: 10050 x 4920 x 2200 mm
machine weight: approx. 7500–8500 kg

fiber laser sheet cutting system
5' x 10' cutting format
dual pallet shuttle system
high-speed dynamic cutting capability
high-precision industrial cutting system
Japanese-type high-inertia servo drive system
ferrous and non-ferrous material processing capability
