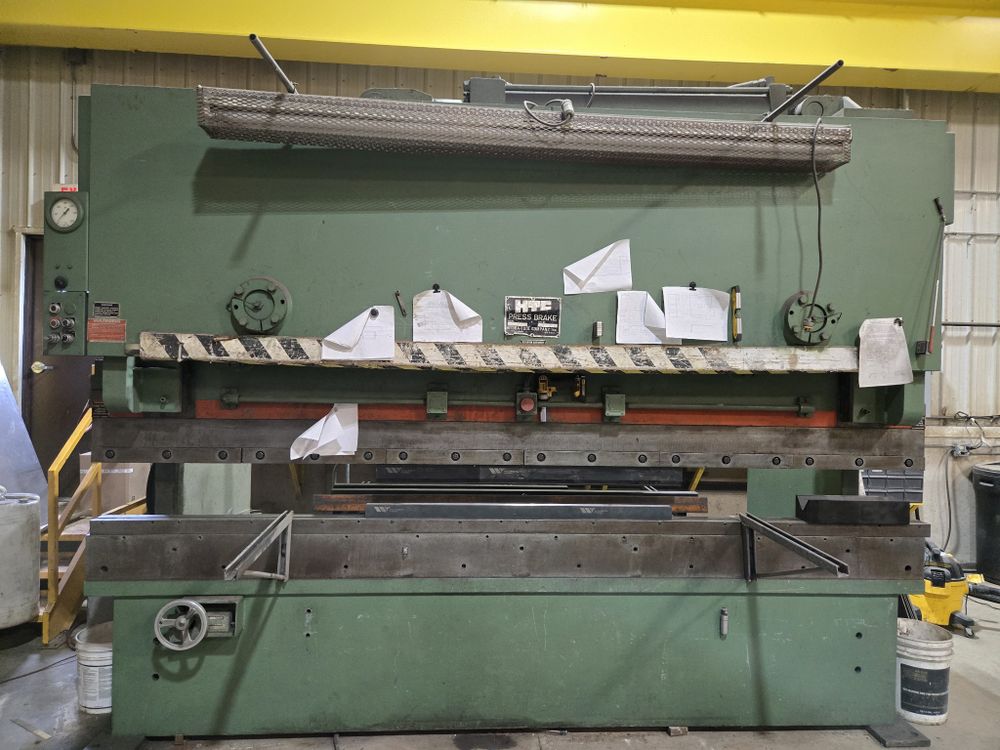

HTC 150G 150 US tons
Ref :
2806469-3-AW
Condition :
Used
Manufacturer :
HTC
Model :
150G
Pressure :
150 US tons
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Press force: 150 US tons
Bed and ram length: 12 ft
Distance between housings: 101.5 in
Stroke: 7 in
Open height: 12.5 in
Closed height: 5.5 in
Approach speed: 60 IPM
Forming speed: 40 IPM
Return speed: 120 IPM
Bed width: 5.375 in
Throat depth: 9 in
Main motor: 25 HP
Electrical: 480 V / 3 Ph / 60 Hz
Sectional ram clamps
Electric foot switch
Palm button station
Manual back gauge
Overall dimensions: 12 ft × 80 in × 118 in
Approximate weight: 28,000 lb
