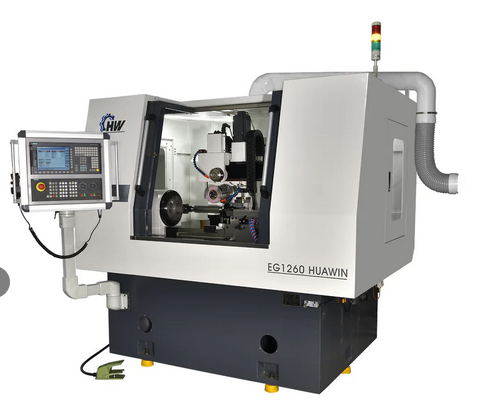

Huawin EG 1260

External Spline Grinder
Spline Diameter: 20 - 120 mm
Spline Width: 4 - 20 mm
Number of Splines: 1 - 99
X-Axis Travel: 70 mm
Y-Axis Travel: 150 mm
Z-Axis Travel: 600 mm
U-Axis Travel: 40 mm
Spindle Motor Power: 8 kW
Max Spindle Speed: 10000 rpm
Max Torque: 500 Nm
Air Connection: 5 bar
Total Power Required: 20 kVA
Machine Weight: 4500 kg
Machine Length: 2200 mm
Machine Width: 1650 mm
Machine Height: 2000 mm
