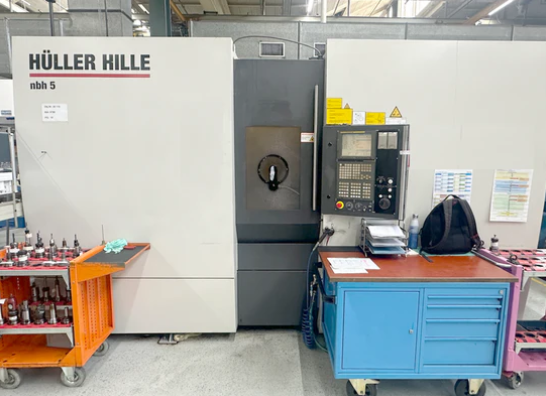

Huller HILLE BLUESTAR 5 5 Axis

X-axis travel 700 mm
Y-axis travel 630 mm
Z-axis travel 700 mm
Table length 750 mm
Table width 700 mm
Table load max 500 kg
B-axis division 0.001°
B-axis speed 30 rpm
A-axis holding torque 4000 Nm
A-axis tilting moment 8000 Nm
Pallet length 500 mm
Pallet width 500 mm
Pallet weight 150 kg
Pallet change time 7 s
Transport weight 500 kg
Tool changer positions 40
Tool diameter max 80 mm
Tool diameter with free pockets 150 mm
Tool length 350 mm
Max tool weight 10 kg
Tool change time 2.5–4.5 s
Chip-to-chip time 4 s
Spindle taper HSK-A63
Spindle speed from 1 rpm
Spindle speed up to 10000 rpm
Spindle power 30/18 kW
Spindle torque 202 Nm
Feed range 1–50000 mm/min
Rapid traverse 50 m/min
Acceleration 7 m/s²
Max feed force 5000 N
Air connection 6 bar
Voltage 400 V
Total power required 27 kVA
Machine weight about 12500 kg
Machine length 4000 mm
Machine width 3000 mm
Machine height 3000 mm

FEATURES / EQUIPMENT
Control GE FANUC Series 21i-MB
Direct measuring system
Set of toolholders
Coolant system
Paper filtration system
Chip conveyor
Rotating viewing window
