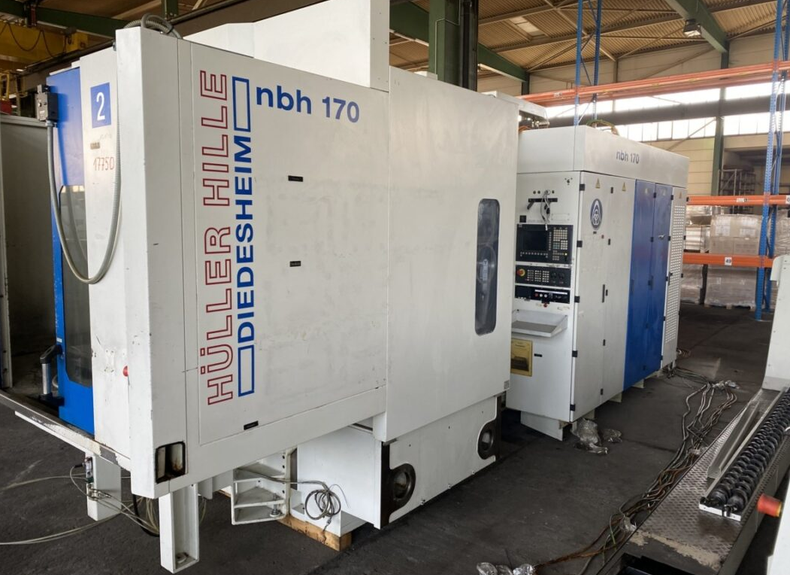

Huller HILLE NBH 170 10,000 RPM

X-Axis Travel: 1000 mm
Y-Axis Travel: 800 mm
Z-Axis Travel: 800 mm
B-Axis: 360° × 1°
Feed Rate: 1–36,000 mm/min
Control: Siemens SINUMERIK 840D
Spindle Speed: 10–10,000 RPM
Tool Taper: SK50 (DIN 69871)
Table Size: 2 × 500 × 630 mm
Maximum Workpiece Weight: 800 kg
Maximum Workpiece Length: 650 mm
Maximum Tool Diameter: 100 mm
Maximum Tool Diameter (Adjacent Pockets Empty): 325 mm
Tool Magazine Capacity: 100
Chip-to-Chip Time: Approx. 8 sec
Pallet Change Time: Approx. 12 sec
Repeatability: ±3 μm
Total Power: 65 kW
Machine Weight: 20 t
NC Rotary Table
Chip Conveyor
Coolant Unit
Through-Spindle Coolant
2-Cassette Tool Magazine (50 Tools Each)
